Compost turner TG 233

The little one with impressive performance for skid steer loaders.
For compact and telescopic loaders - working width: 2.5 metres. Also for hire.

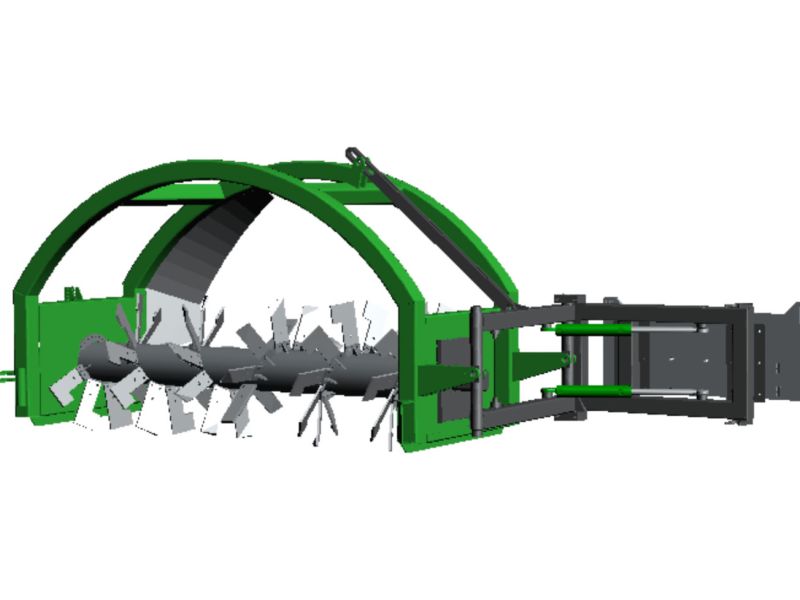

Compost turner TG 233 machine

Ideal for agriculture, market gardens, organic farms and small communes with a composting capacity of up to 2000 tonnes per year.

  • Turning capacity up to 400 m³/h.
  • Manoeuvrable machine; the TG 233 compost turner is only 3.1 m long in the transport position.
  • Low maintenance costs, very simple maintenance.
  • Easy handling, simple operation.
  • The solid arch construction of the tunnel made of 5 mm steel achieves very high stability, has no weak corners and the powder coating prevents corrosion.
  • All wear plates are made of chrome steel.
  • Robust, balanced turning shaft that turns the material to be composted correctly (from the inside to the outside).
  • Rapid aerobic composting; within 8 - 12 weeks, depending on the material.
Compost Turners

Technical data TG 233

  • Transfer capacity up to 400 m³/h
  • Transfer shaft width 2.3 m
  • Total width in transport position open
  • Working width up to 2.5 m
  • Tunnel height internal dimension 1.35 m
  • Working speed, ideal max. 300 m/h
  • Weight (basic equipment) 800 kg
  • Rental width x height 2.5 x 1.2 m


Basic equipment TG 233 - hydraulic version

  • Hydraulic direct drive of the transfer shaft via the oil engine
  • Tunnel with chrome steel plates
  • Support wheel on the outside of the tunnel
  • Mechanical feed plates

Requirements for the compact and telescopic loader

  • For vehicles with an overall width of up to 2.3 m
  • Ideal basic weight of the drive unit 3 t or more
  • For vehicles from 45 hp
  • Working pressure of the hydraulics must reach at least 200 bar, with at least 60 litres of oil per minute (with 2 spreader circuits roller/rakes)
  • Ideal accelerator pedal


Options

  • Water spray bar with 4 baffle plates
  • Electric changeover valve on tedder
  • Hydraulic right-hand side plate
  • Hydraulic drive wheel with control
  • Faster incl. parking bracket
  • Euro mount
  • Third-party loader mount
  • Widening plates set for machine widths from 2.30 m

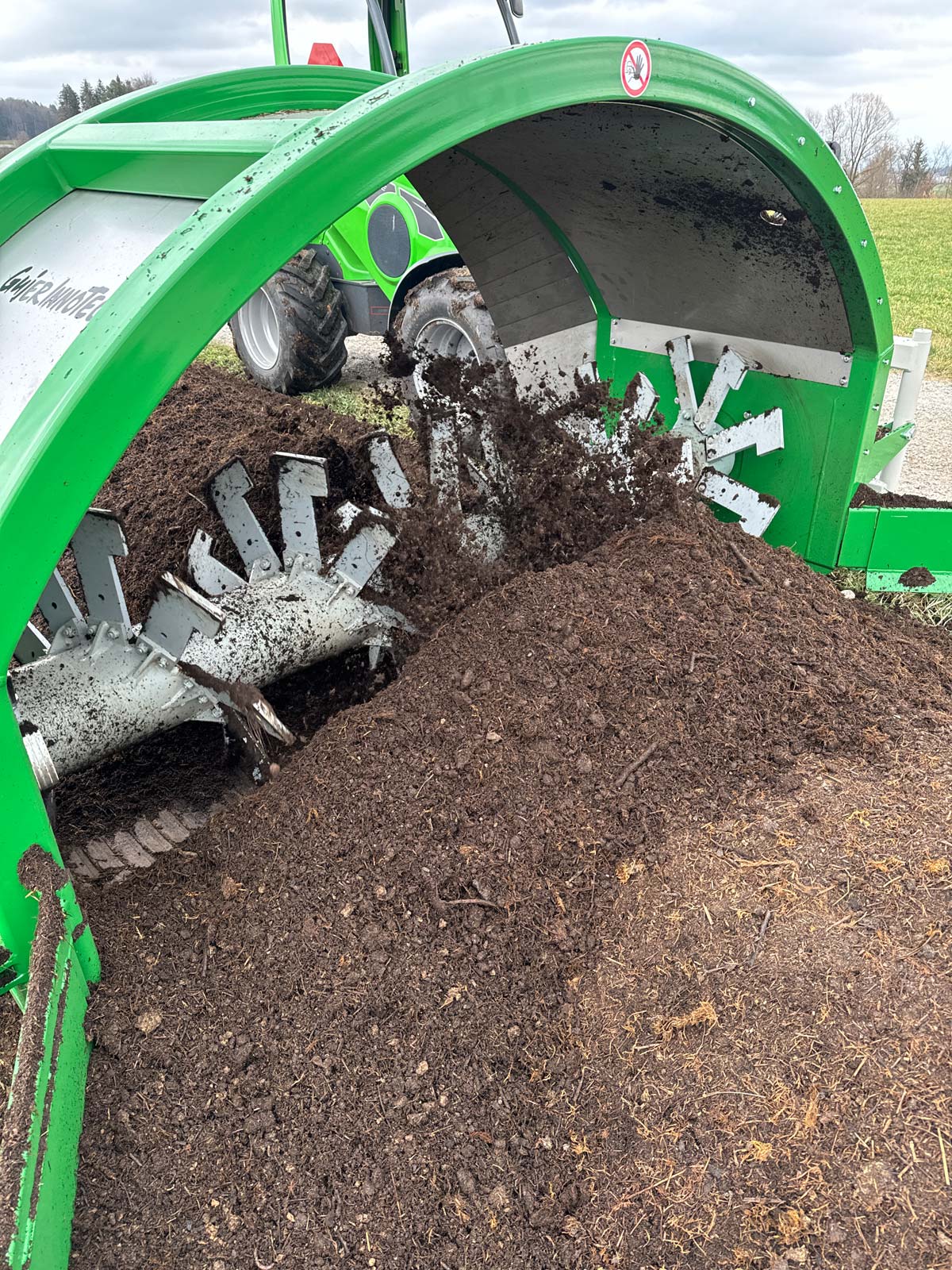

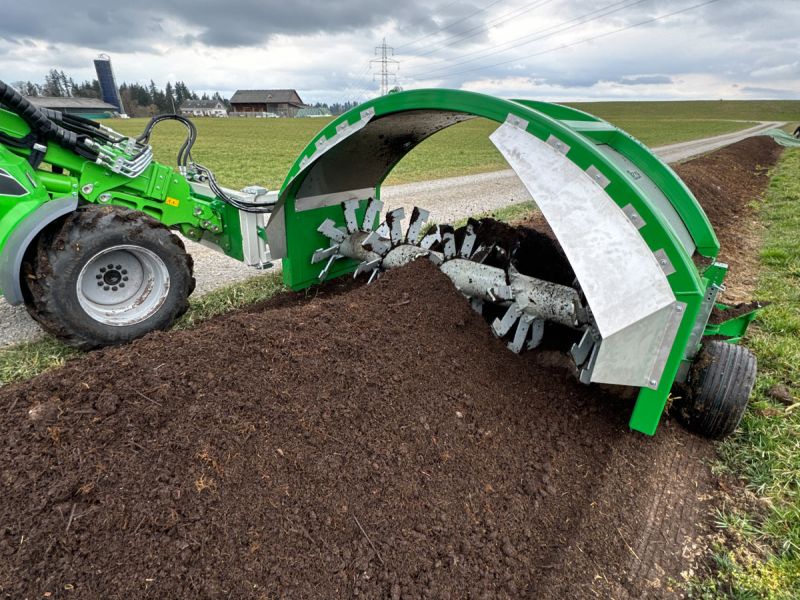

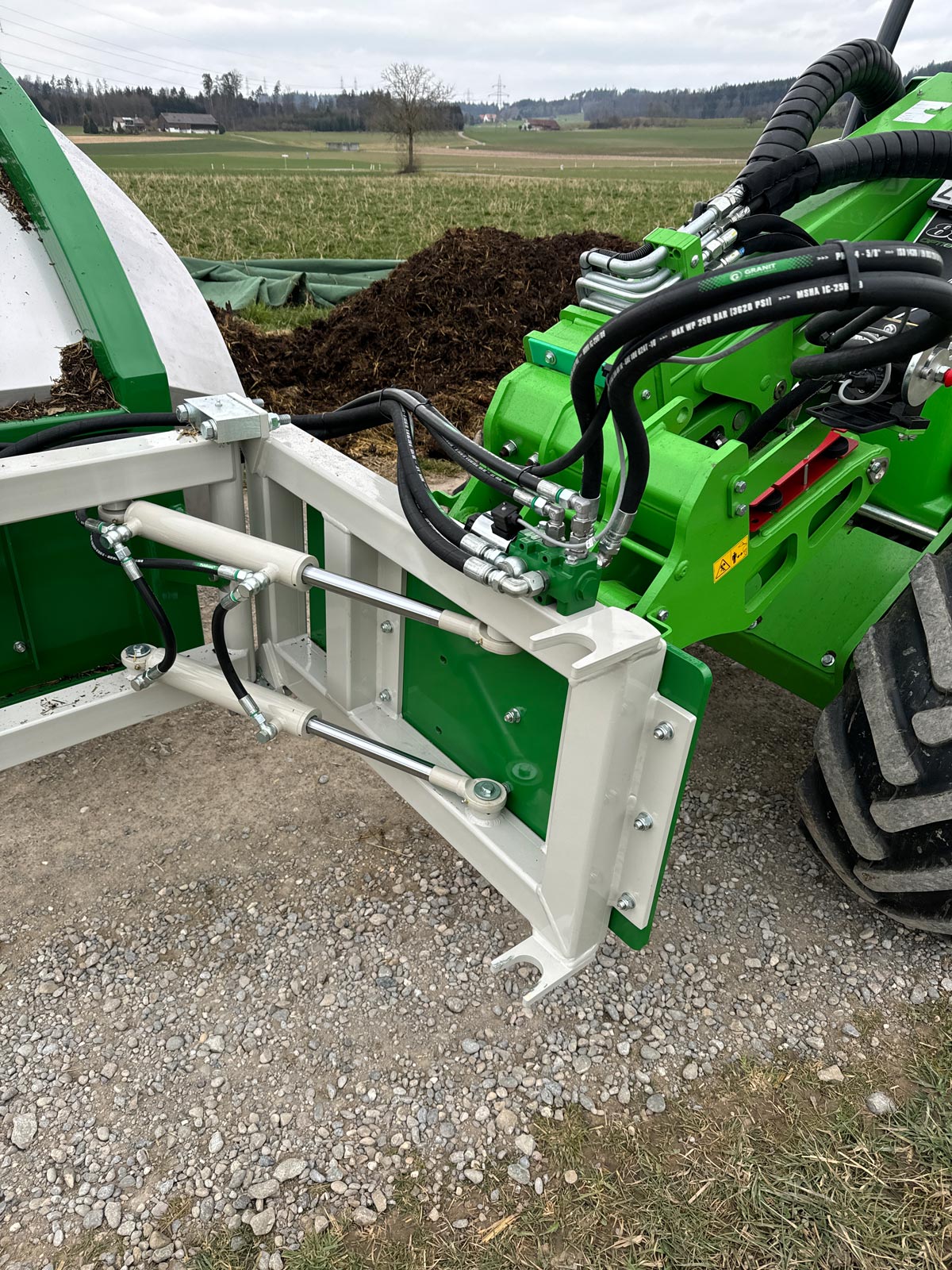

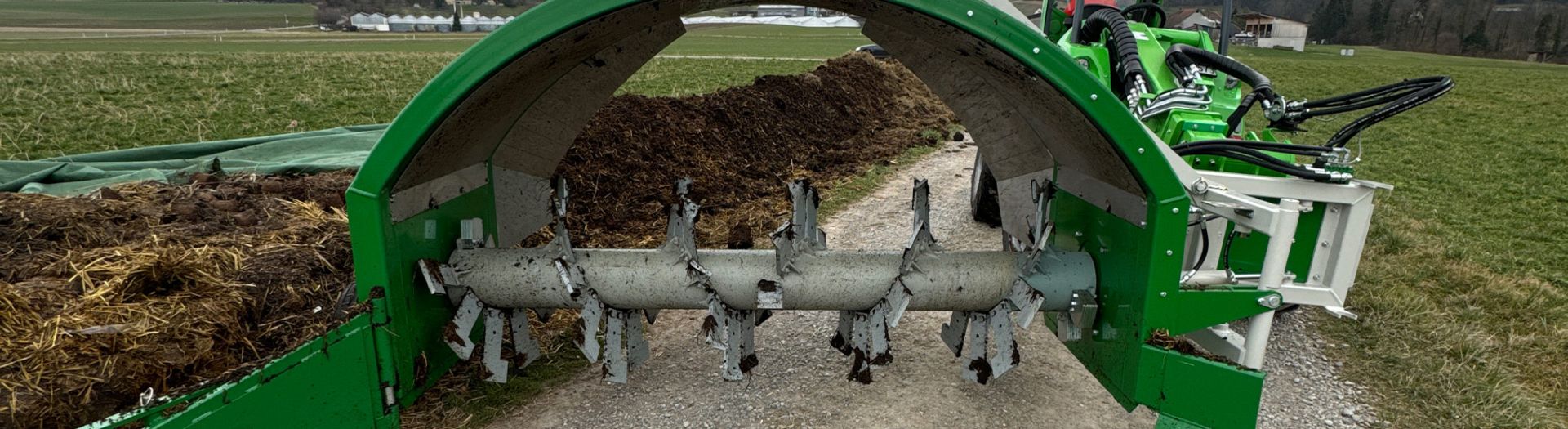

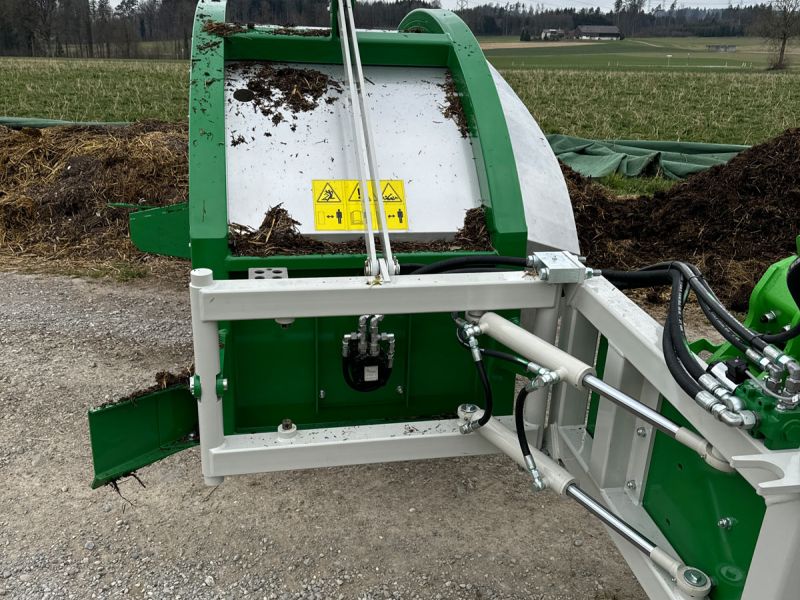

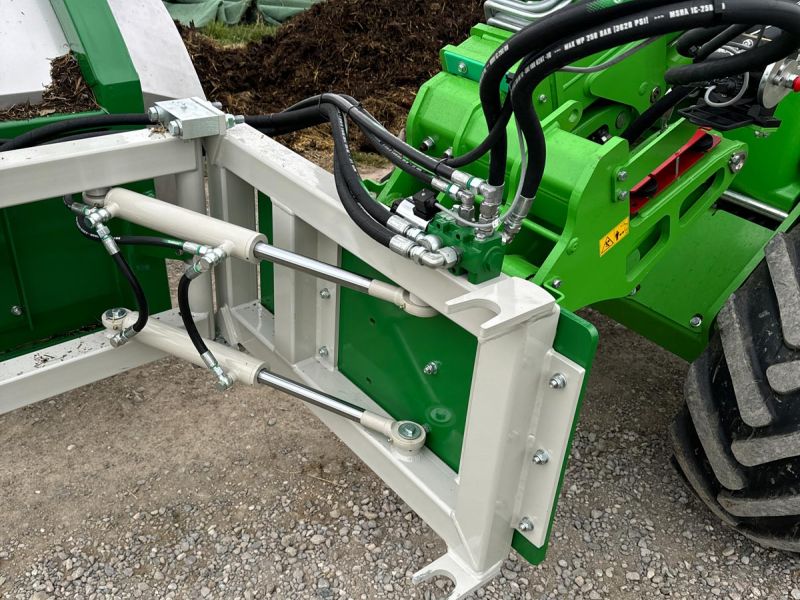

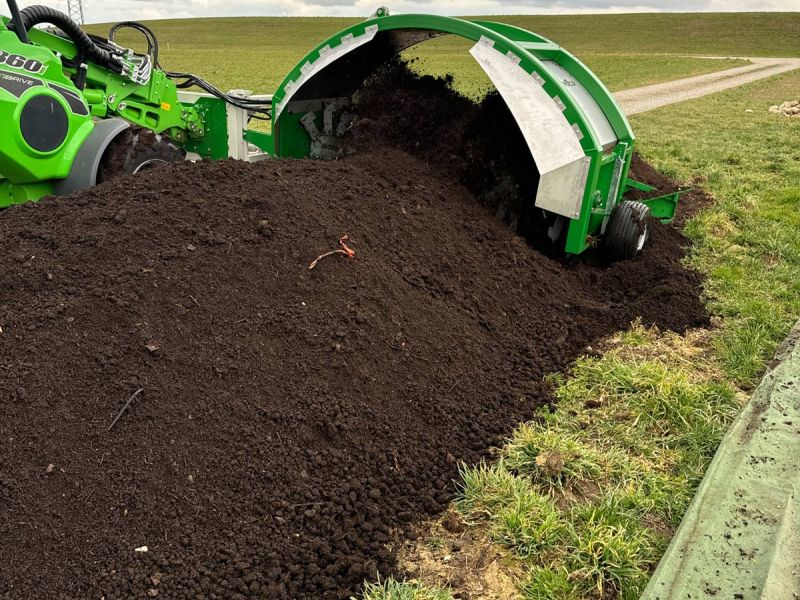

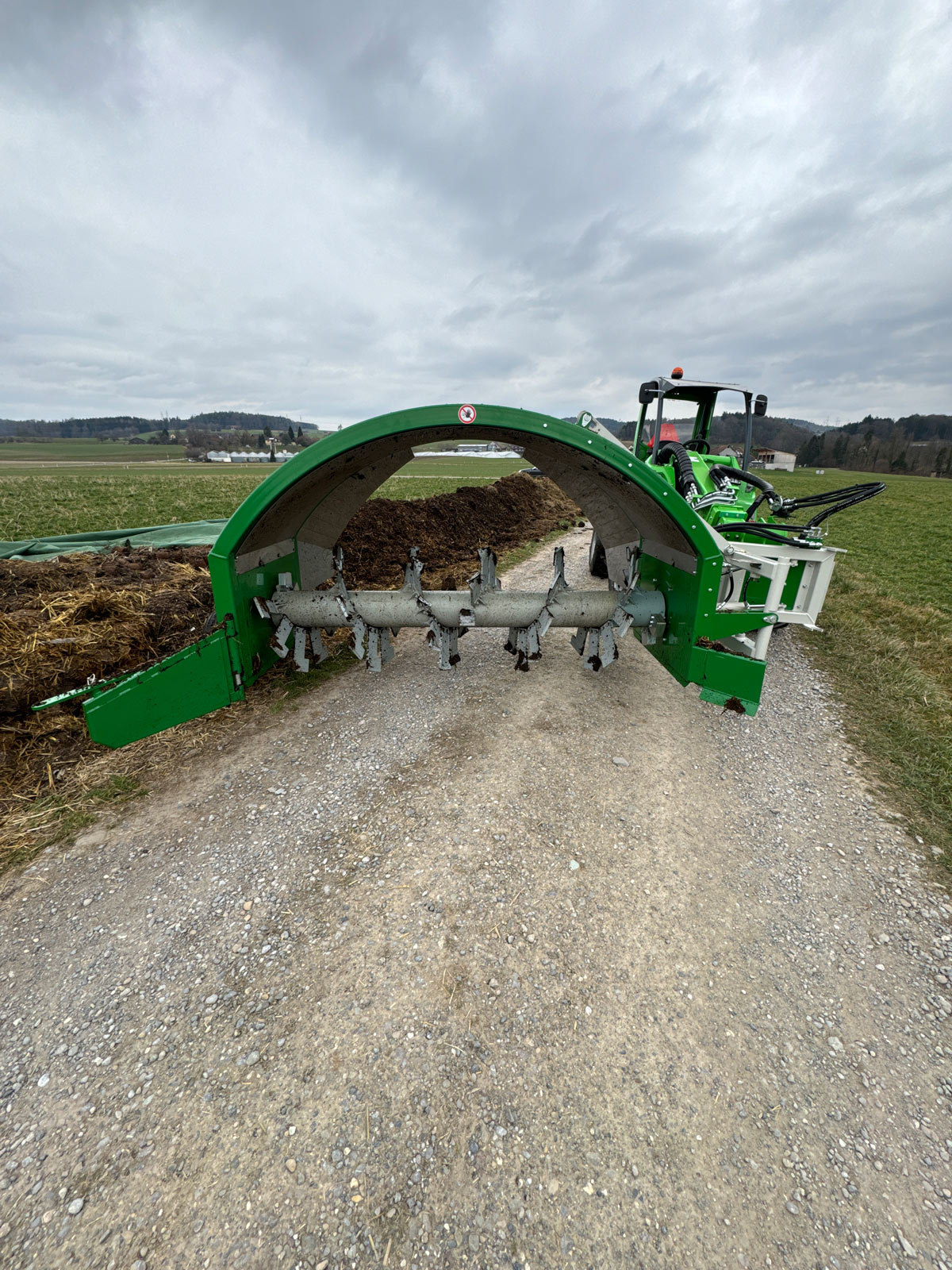

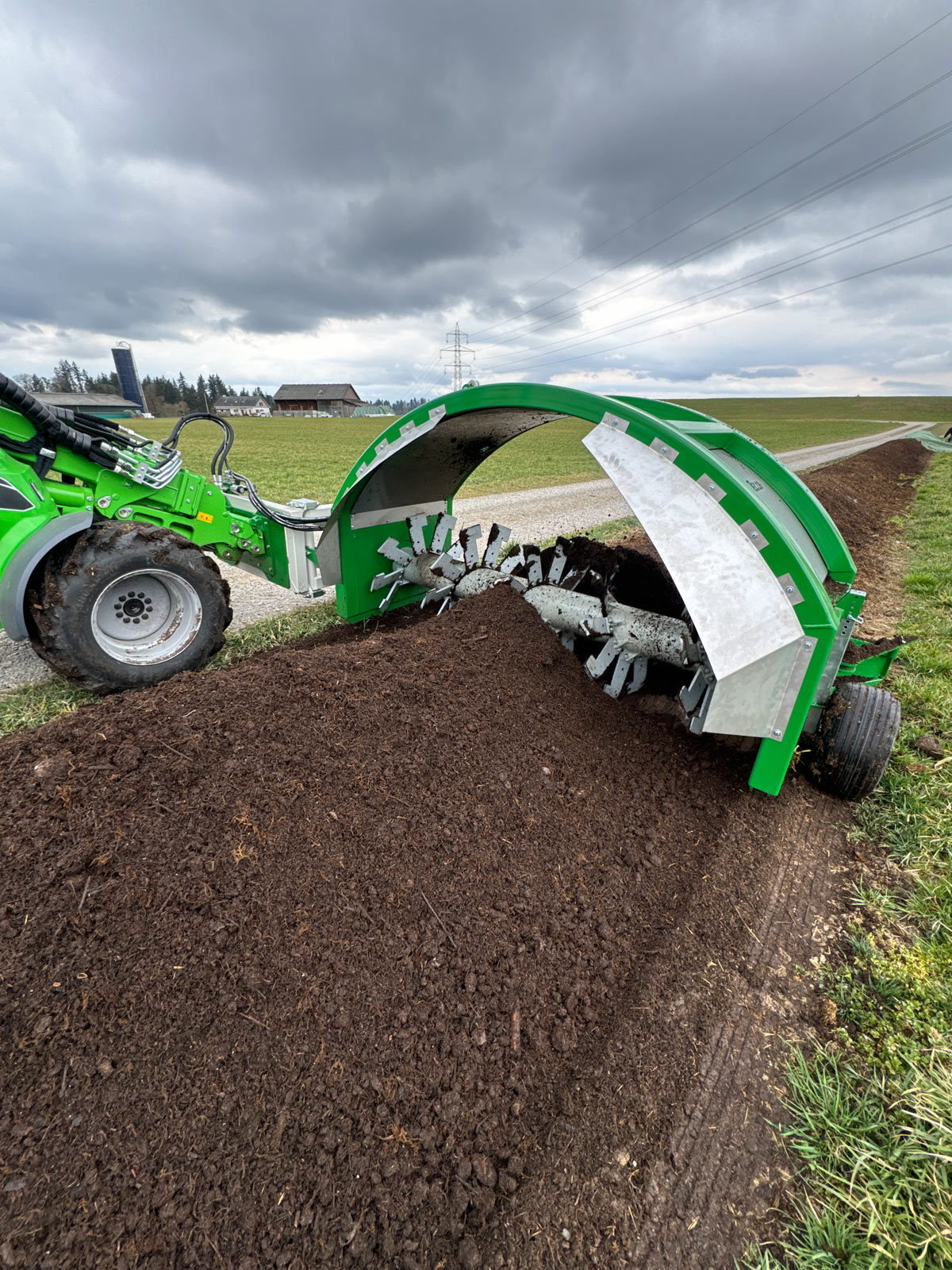

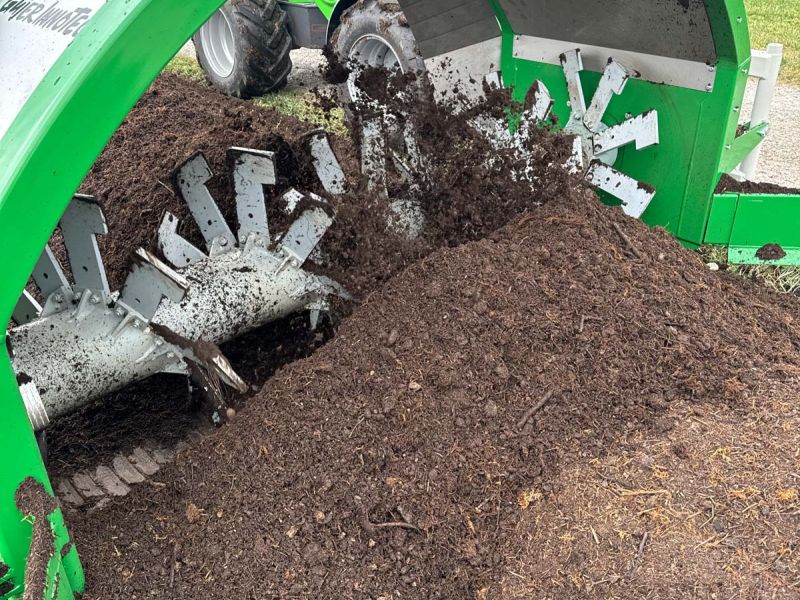

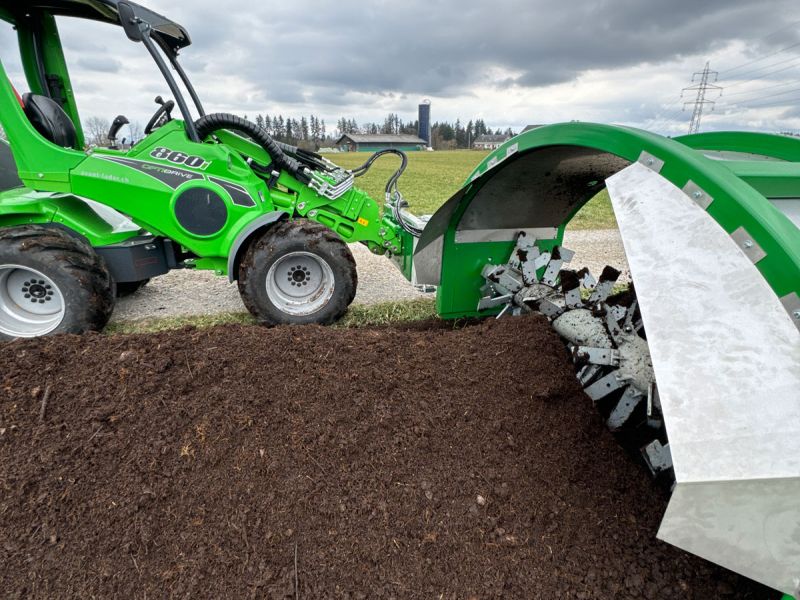

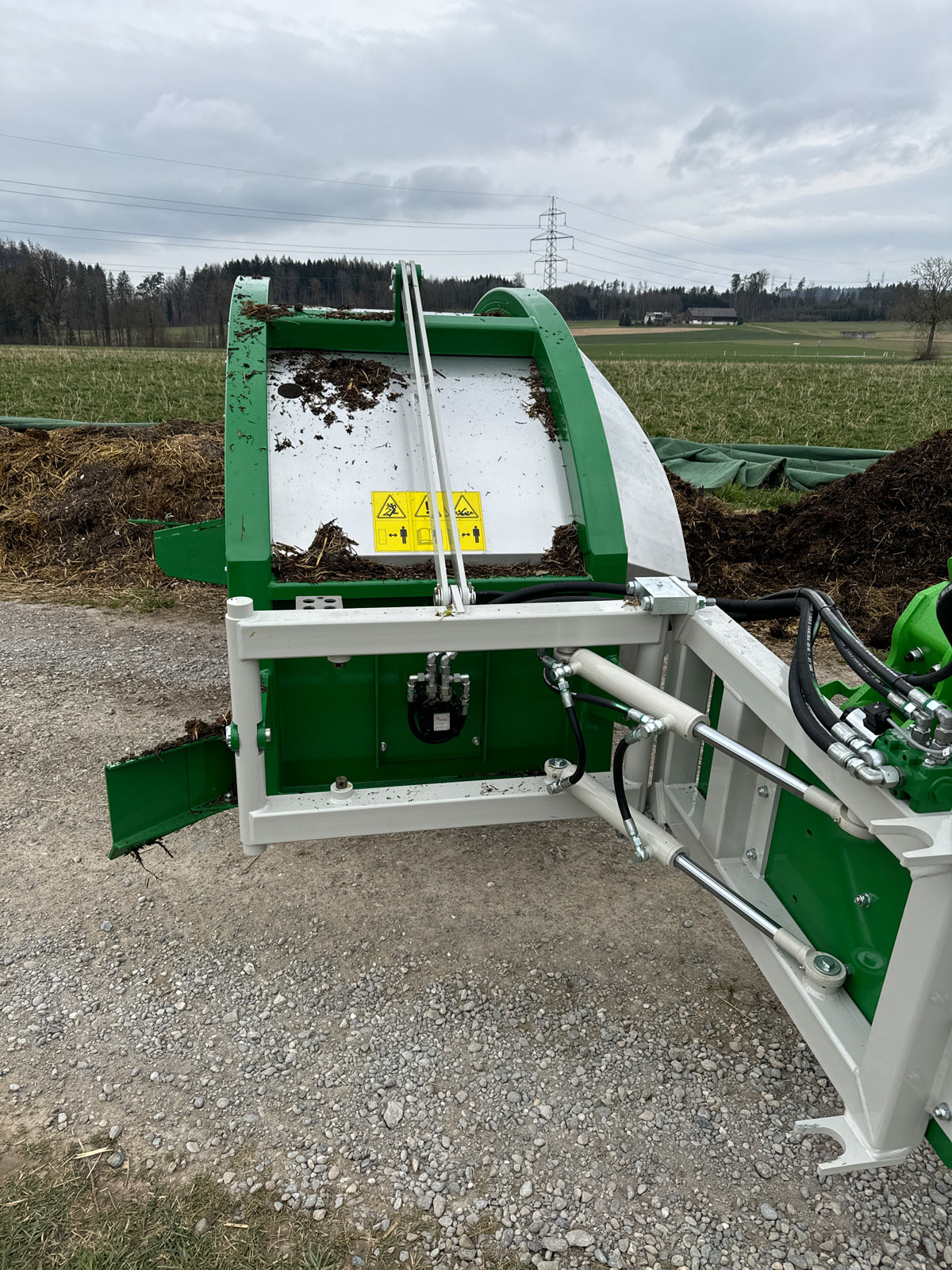

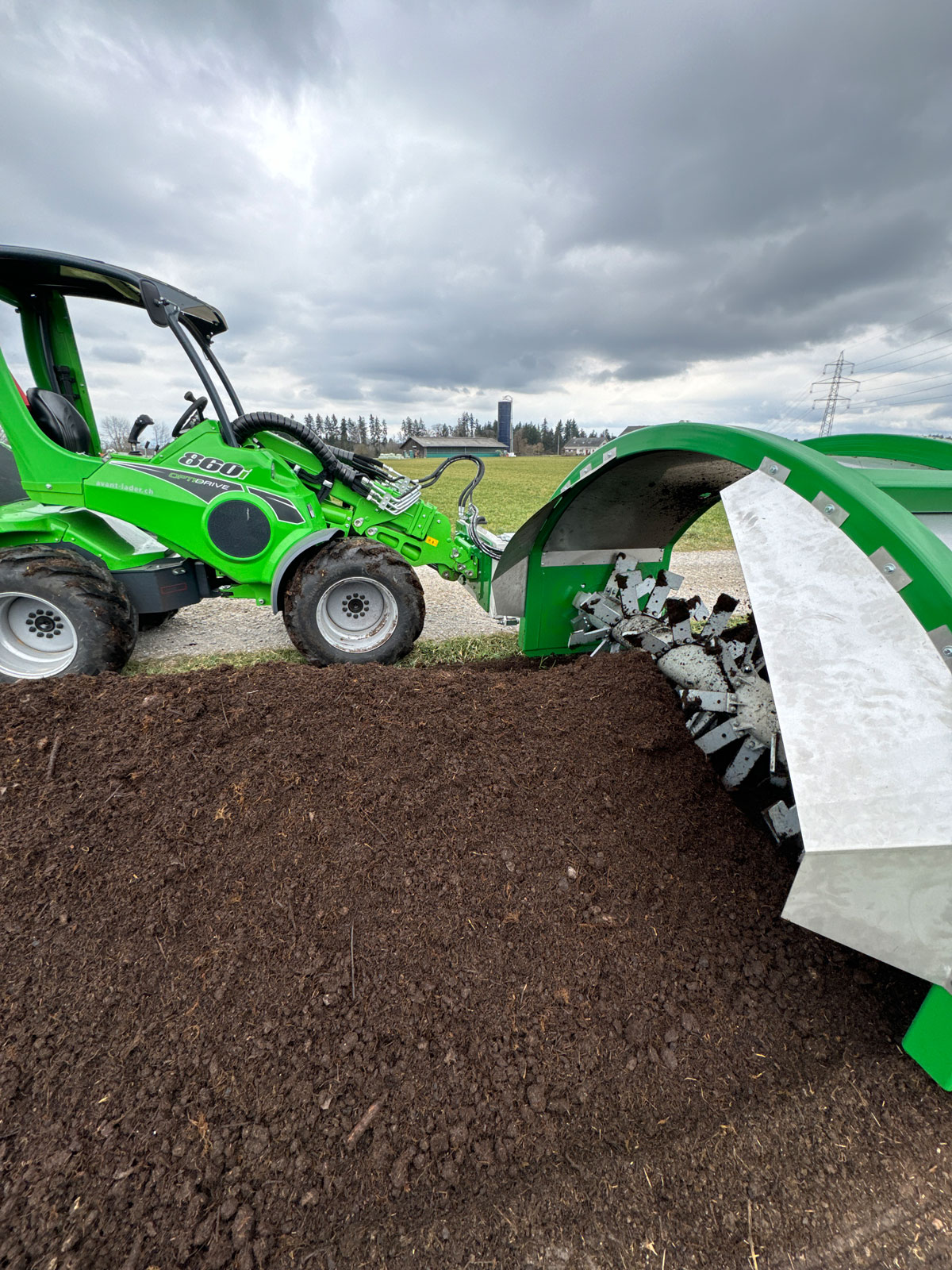

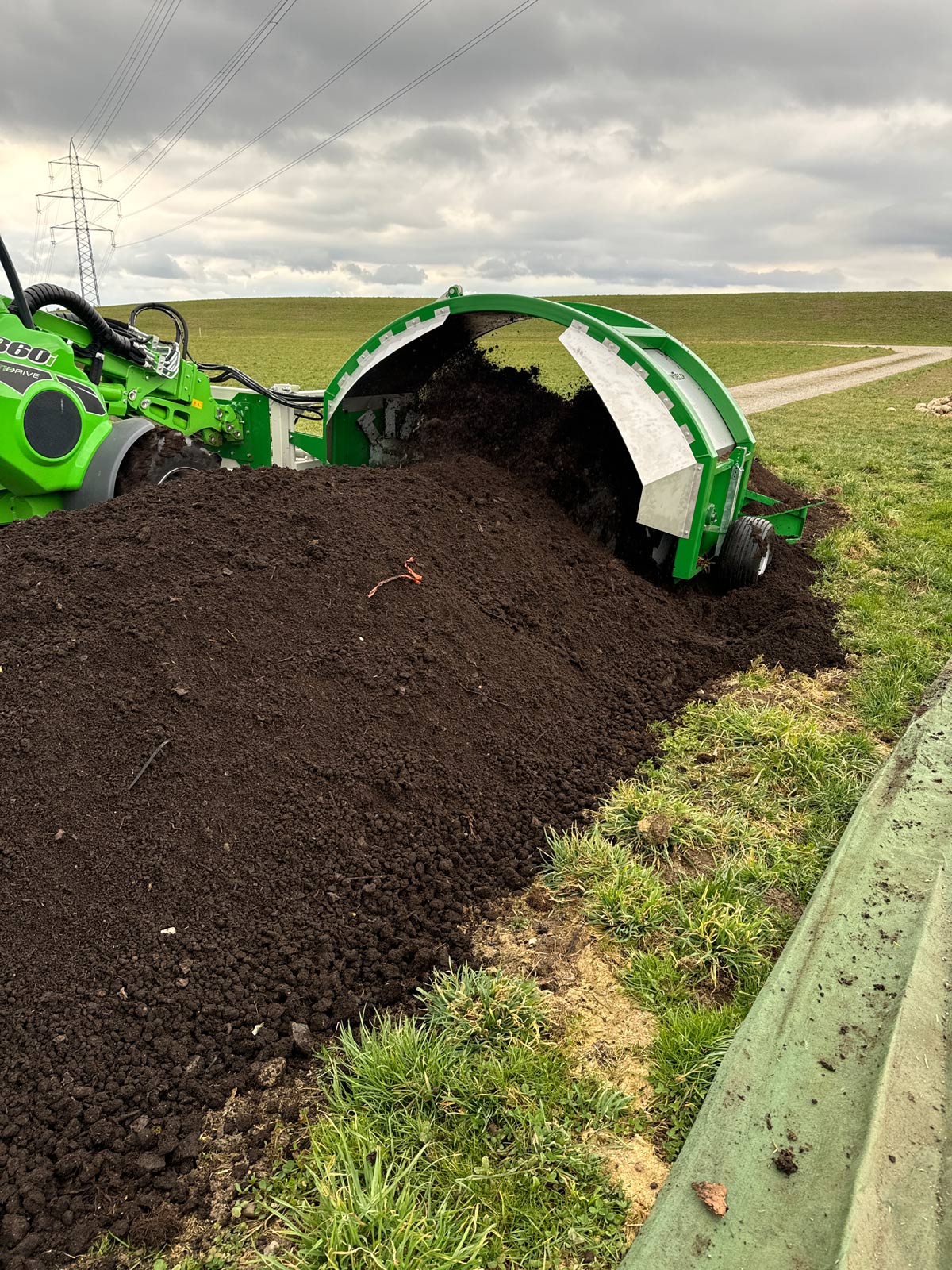

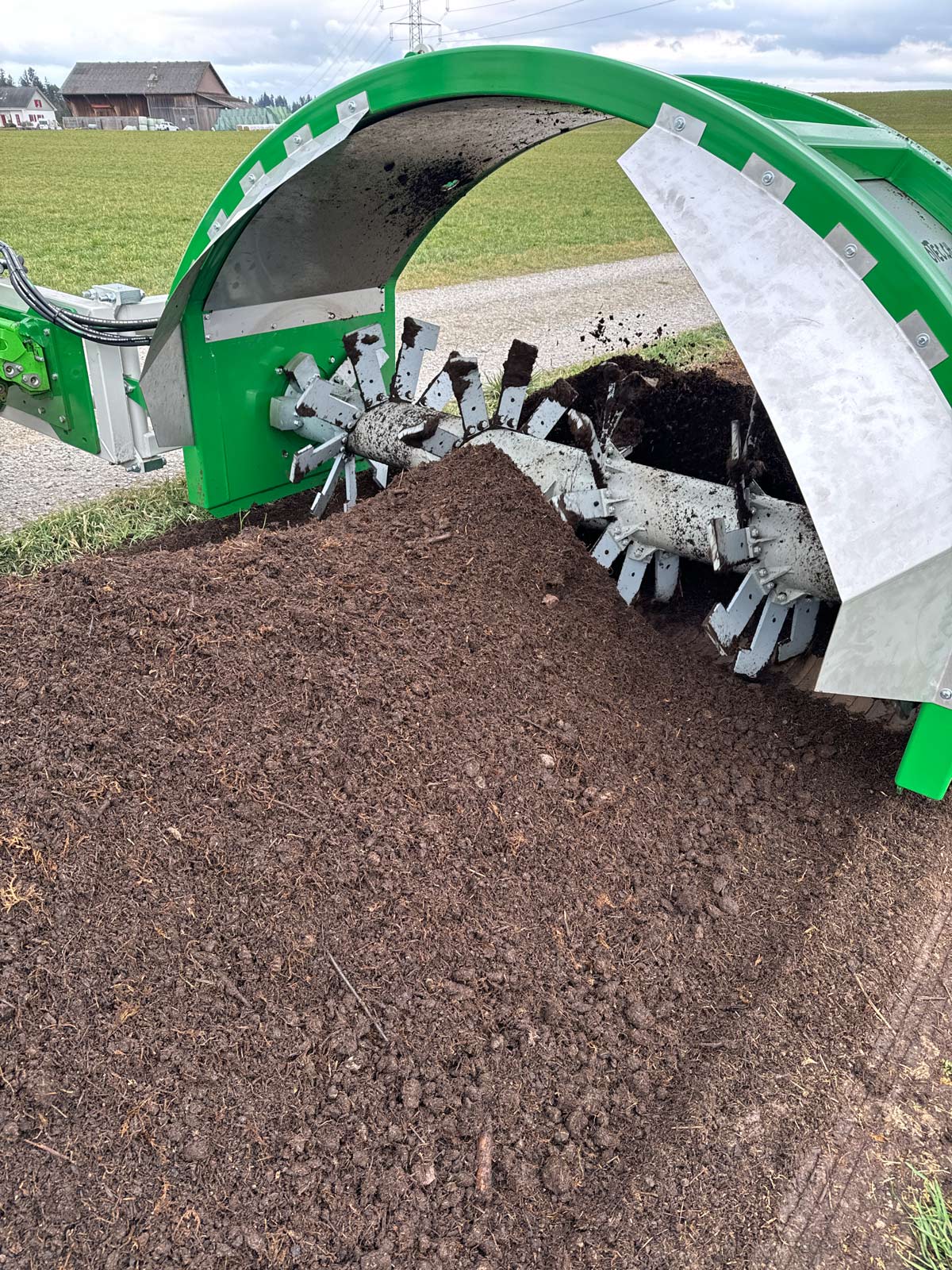

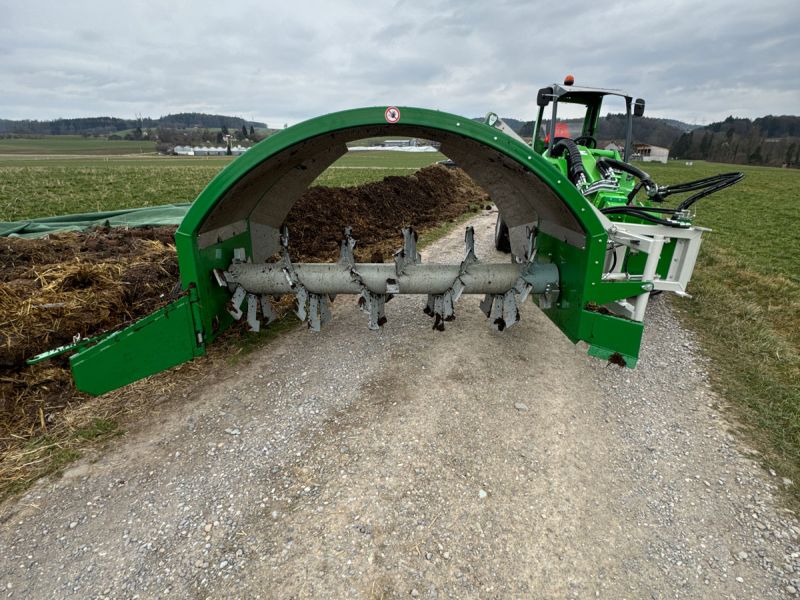

Photos
