Compost turner SGF 2100 B / E & BATTERY

Self-propelled compost turner with petrol, electric or battery power.
Self-propelled – overall width 2.89 m. Working width 2.0 m – NOW also available with a lithium-ion battery
Compost turner SGF 2100 B / E & BATTERY machine

The small self-propelled machine

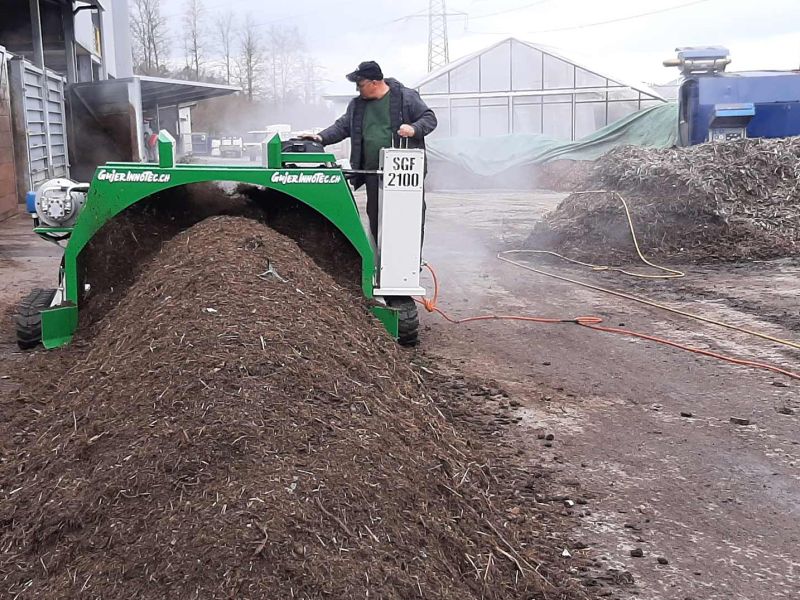

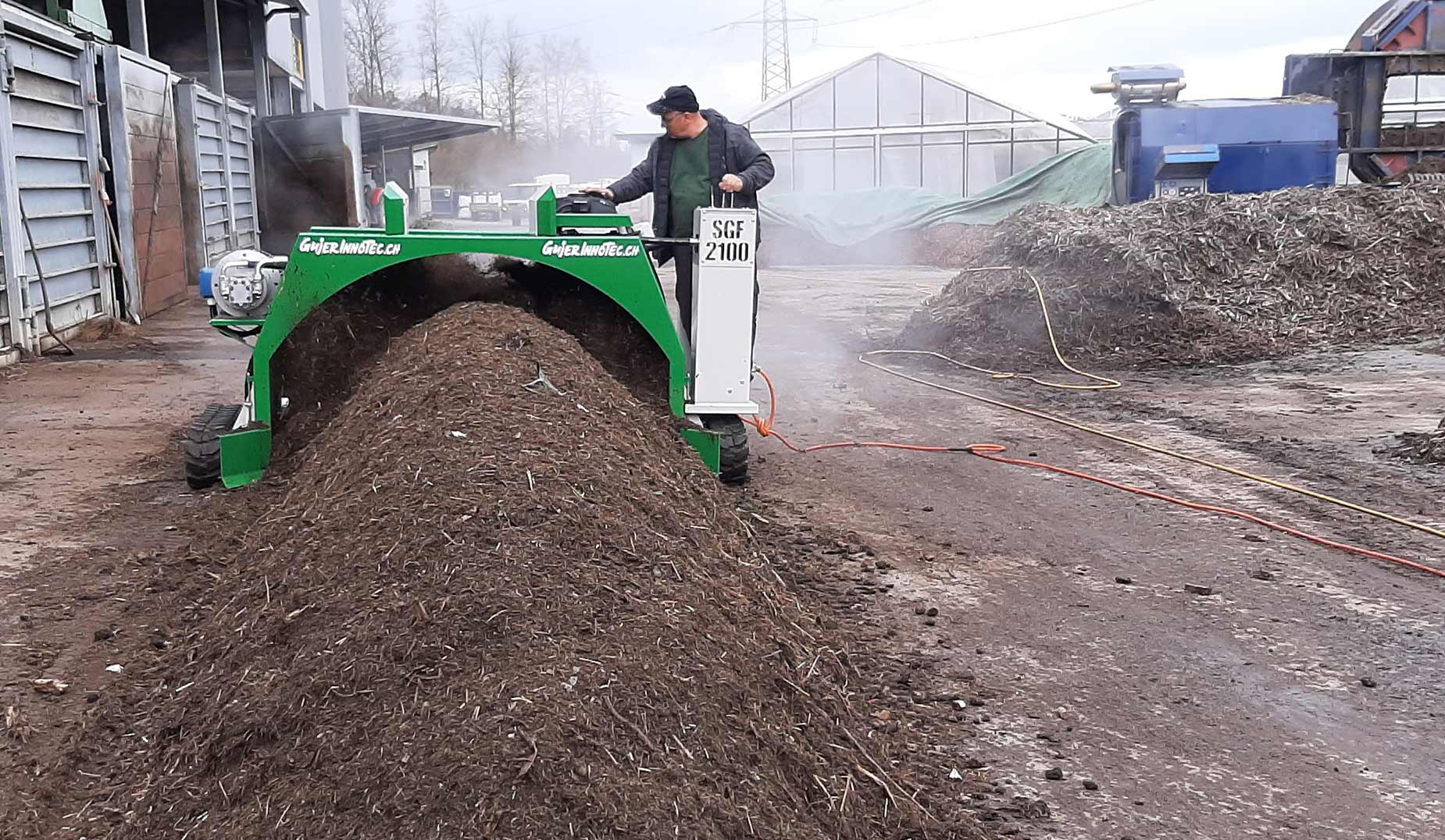

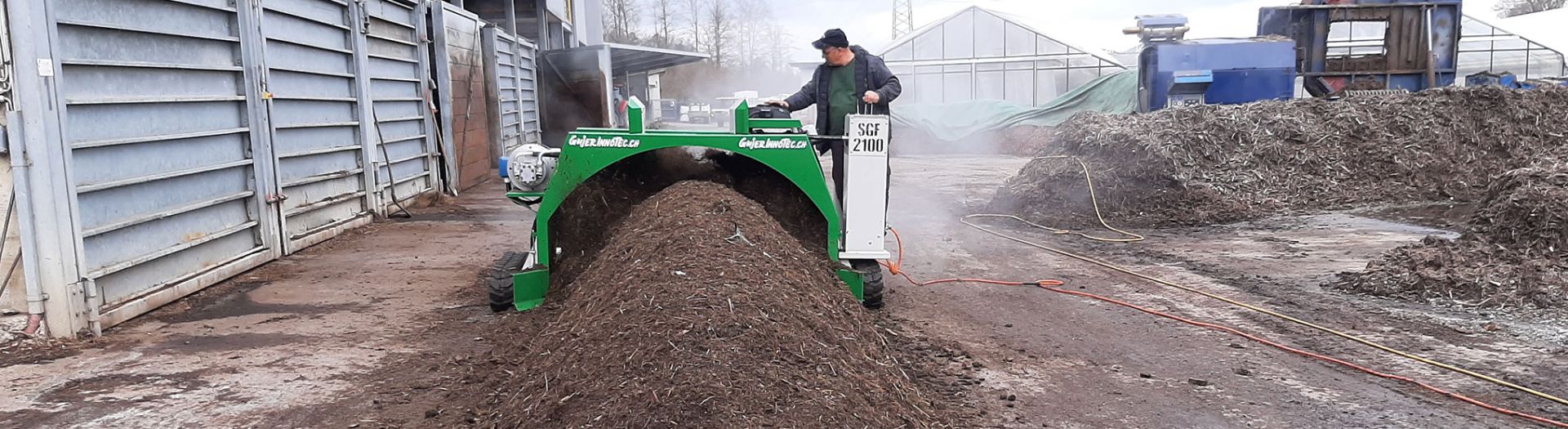

This compost turner allows you to turn the optimum amount of compost in the smallest of spaces. Both machines are characterised by their easy manoeuvrability and simple operation. Approximately 1 m3 of material can be turned per running metre. If the SGF 2100 E & BATTERY is powered by a solar system, you can turn compost in a CO2-neutral manner.


Ideal for agriculture, nurseries, organic farms, and small municipalities with composting of up to 500 tons per year.

  • Throughput capacity up to 300 m³/h.
  • With the SGF2100 E & BATTERY-> Composting without exhaust gases.
  • Low maintenance costs, extremely easy to maintain.
  • Easy to handle, simple to operate.
  • The solid steel arch construction of the tunnel achieves a very high level of stability, has no weak corners and the powder coating prevents corrosion.
  • Wear plates are made of chrome steel.

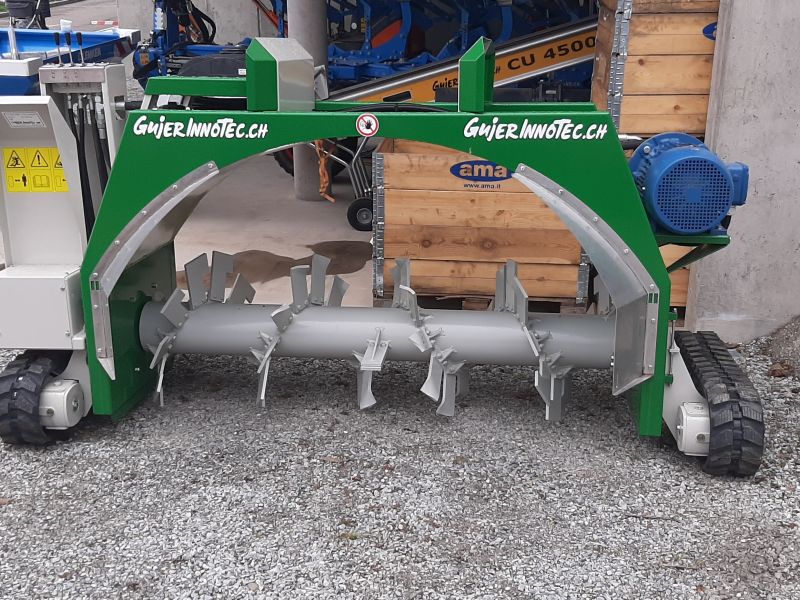

  • Robust, balanced turning shaft that turns the material to be composted correctly (from the inside to the outside).
  • Fast aerobic composting; within 8 - 12 weeks, depending on the material.
  • Pile width up to 2.2 m Hydraulic blades

Drive variants

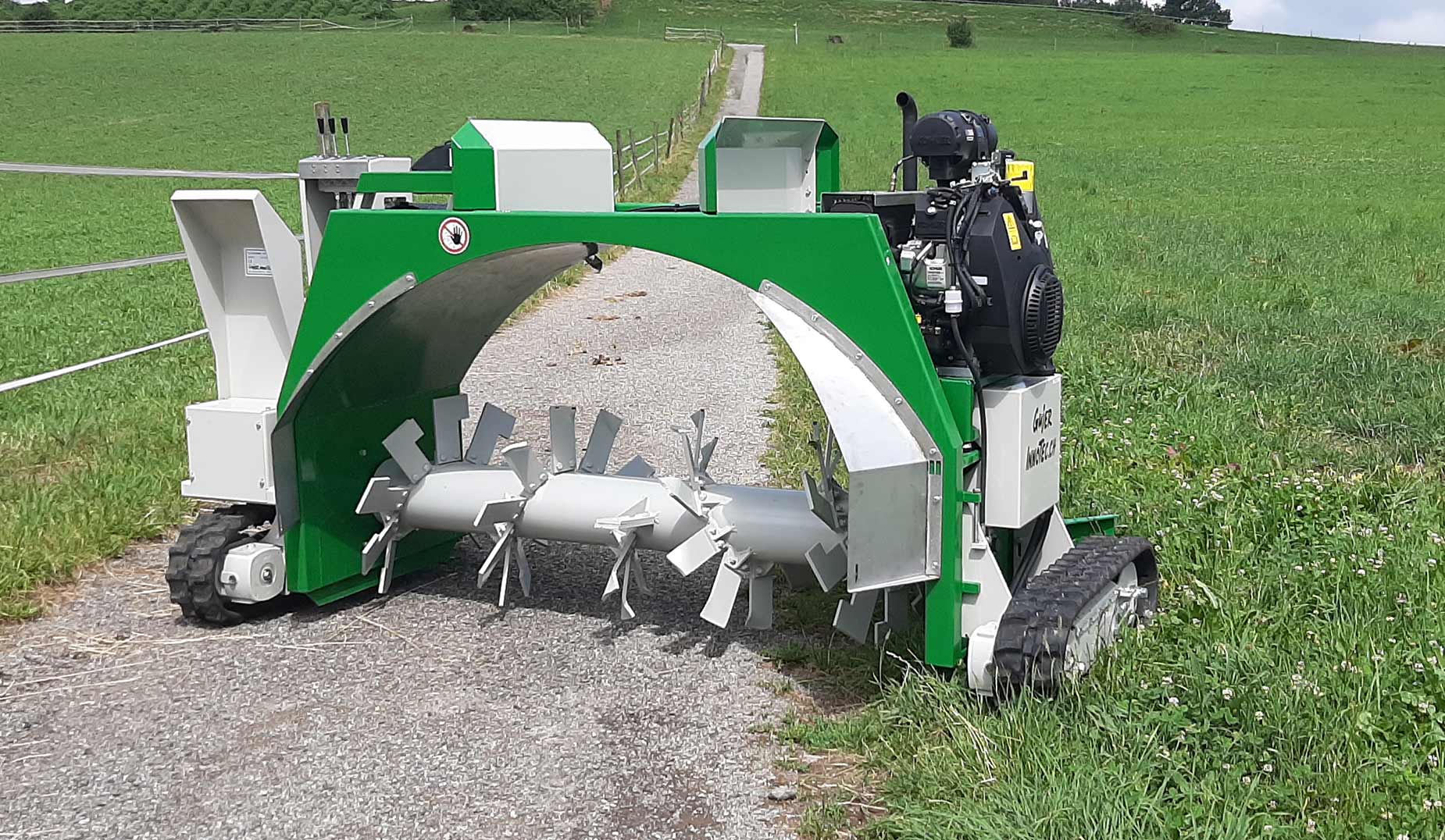

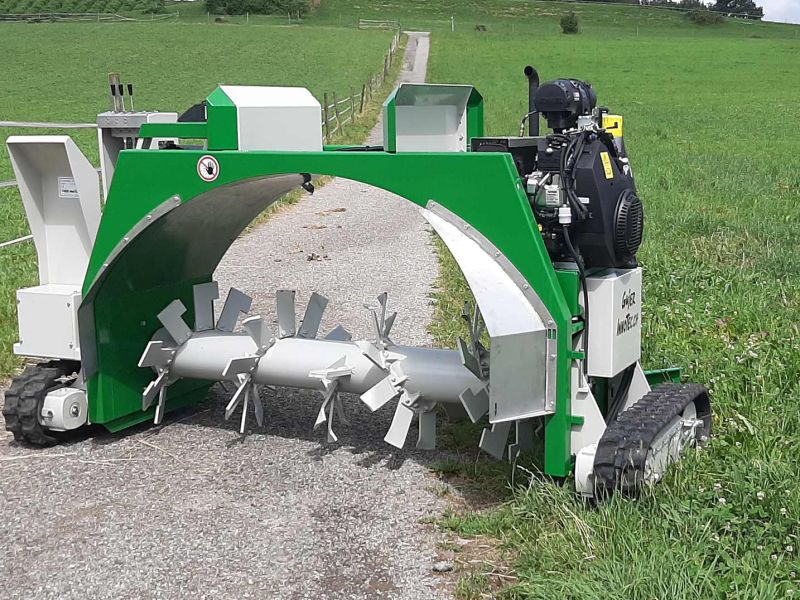

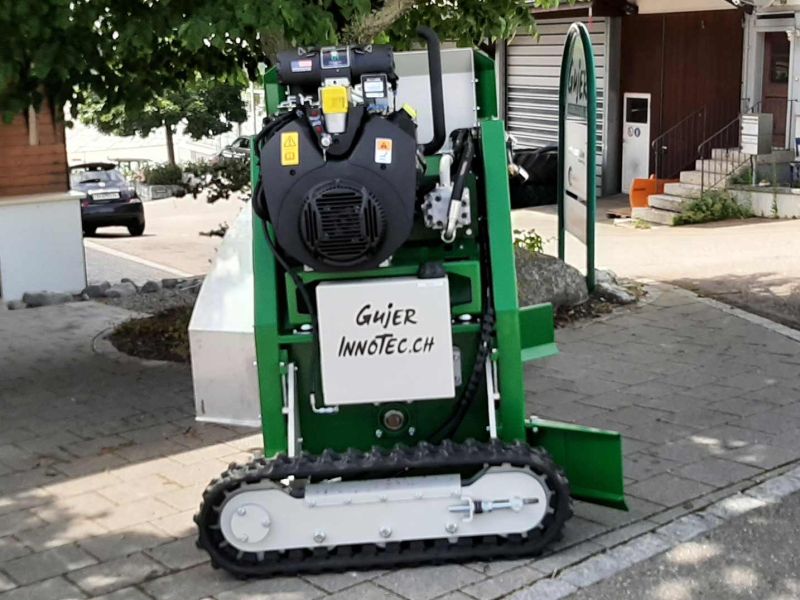

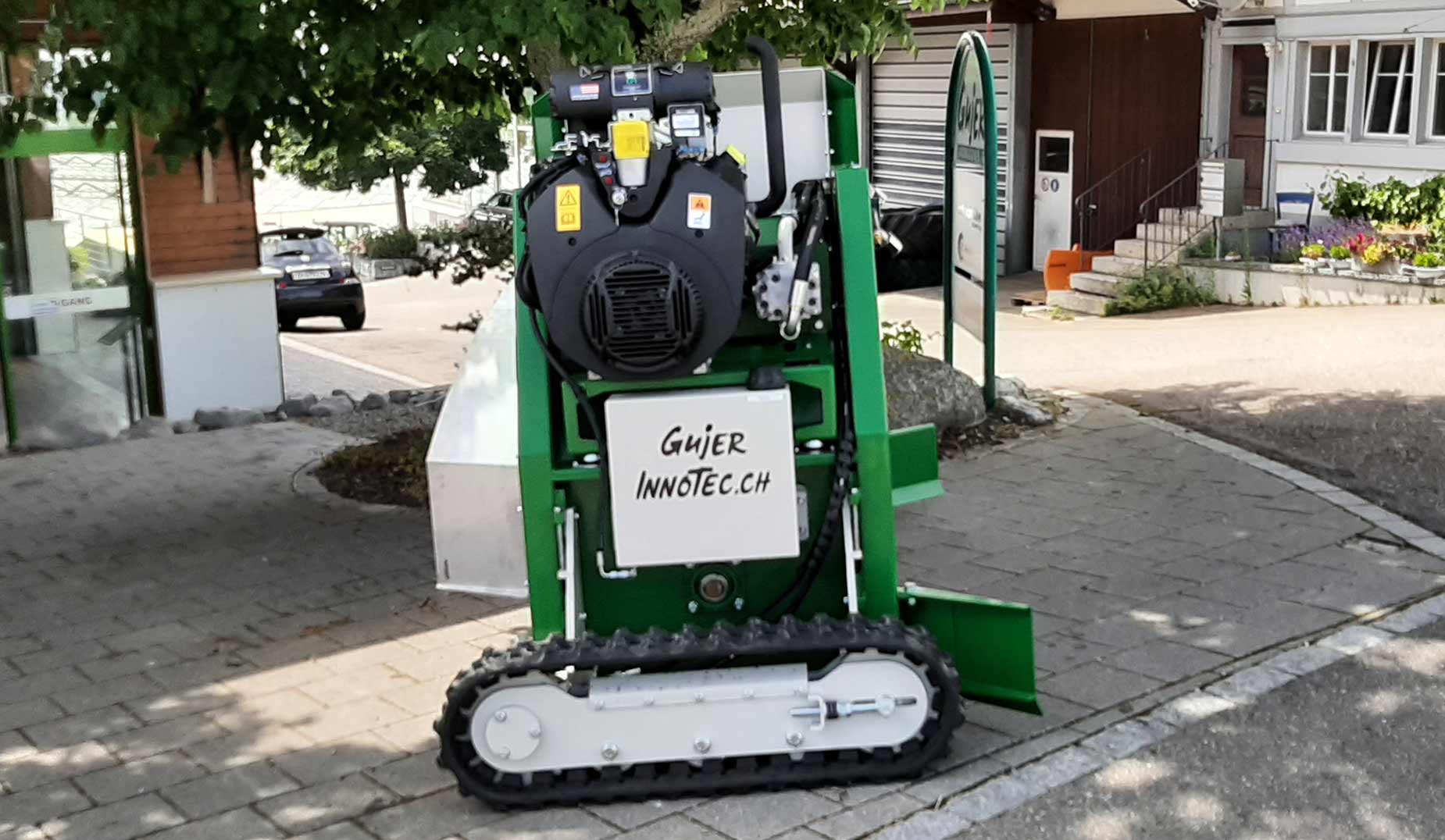

  • Gasoline engine: 2-cylinder / 1000 cm3 / 35 hp

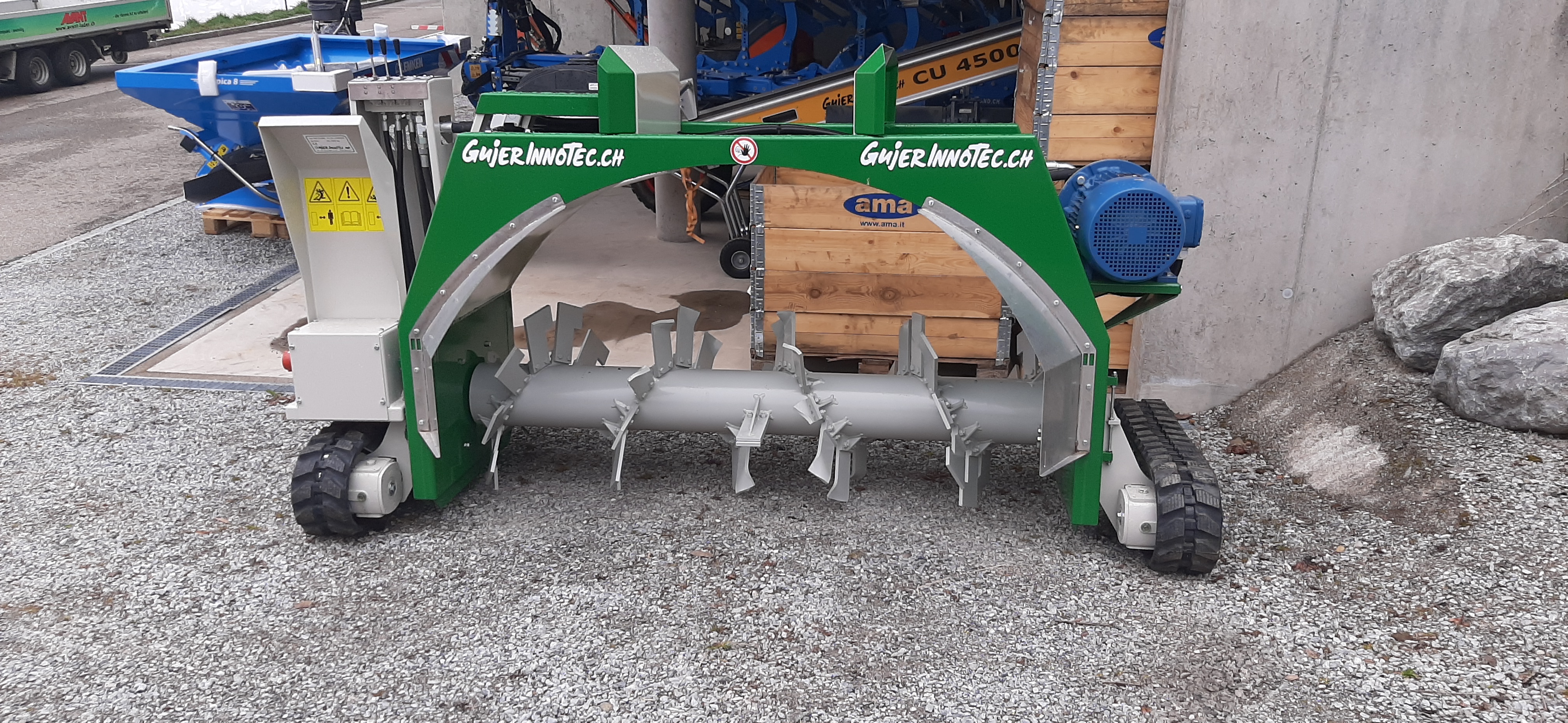

  • Electric motor: 11 kW / 400 V -> Connection: 32 A socket - enquire for country-specific power supply/connections
  • Electric motor with battery: 11 kW motor power 10.4 kW/h, 48 V battery. With a recharge time of 1 hour. This battery could also be connected directly to the power supply during operation.
Compost Turners


Technical data for SGF 2100 E / B & BATTERY

  • Conversion capacity up to 300 m³/h
  • Transfer shaft width: 2.0 m
  • Total width: 2.89 m
  • Total height (with tile horns) 1.6 m
  • Tunnel height inside dimension: 1.15 m
  • Working speed: max. 300 m/h
  • Working width up to 2.1m
  • Weight: 1200 kg
  • Required voltage 400 V (country-specific)
  • Required current 32 A
  • Rental width x height 2.2 x 1.1 m (hydraulic signs)

Basic equipment:

  • Gasoline engine 25 kW or E-motor 15 hp - connection 32 ampere or NEW with a 10.4 kW/h battery
  • Machine for working width up to 2.1m
  • Hydraulic system with Load Sensing pump

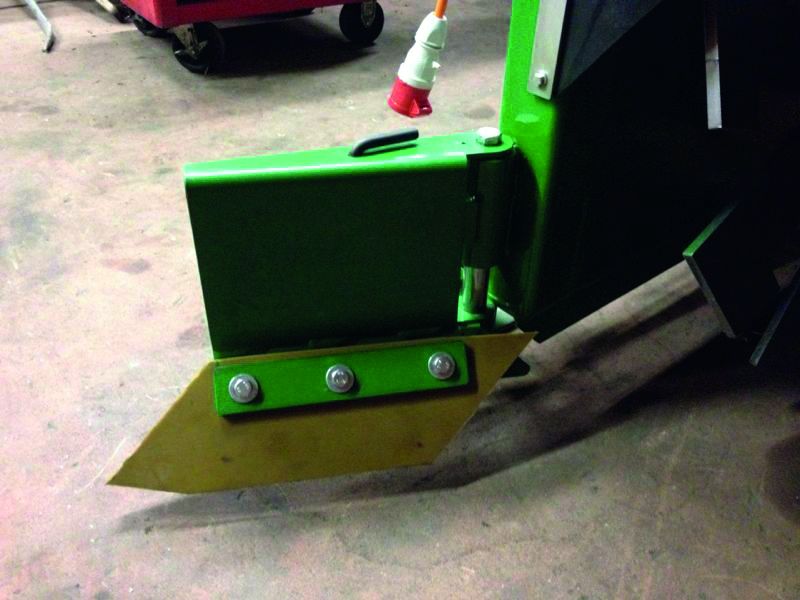

  • Hydraulic feed plates (to the video)
  • Mechanical valves and conversion shaft

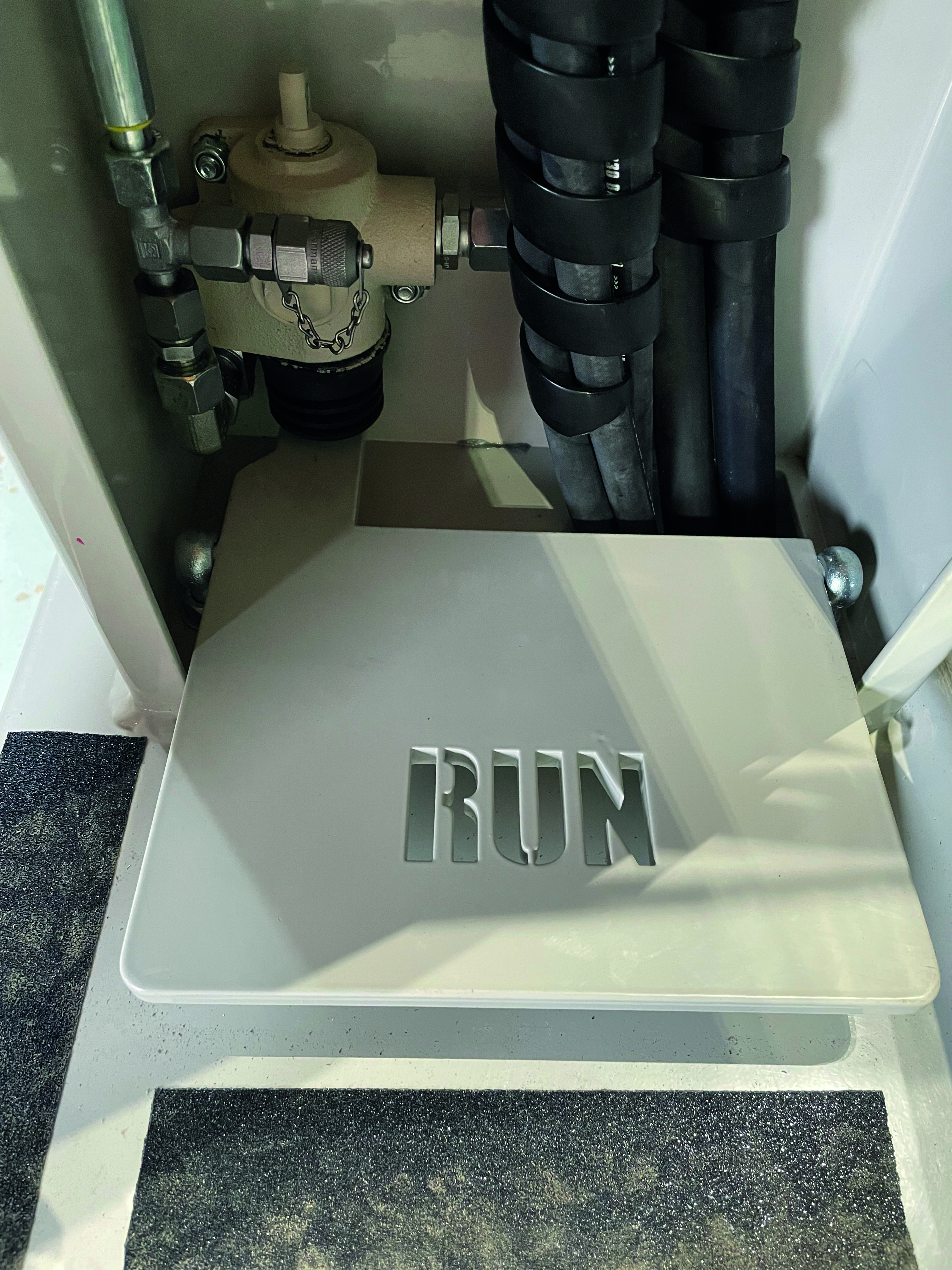

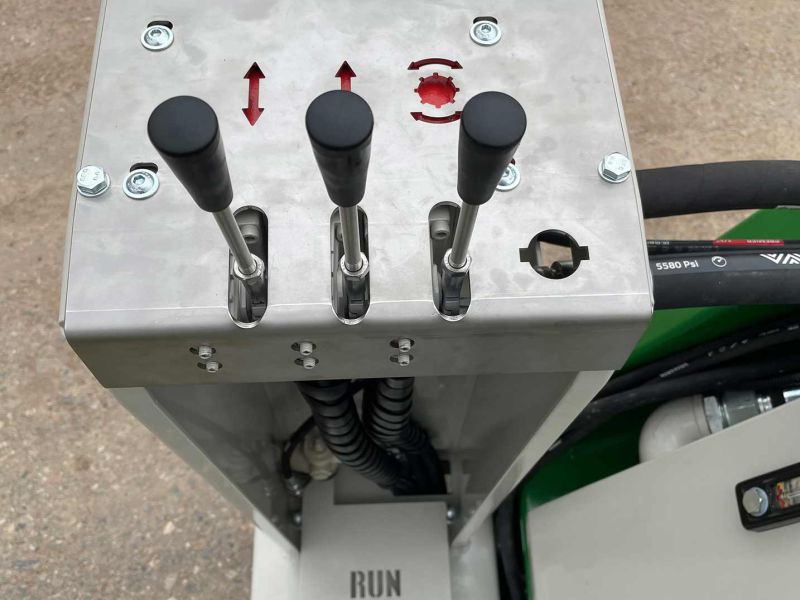

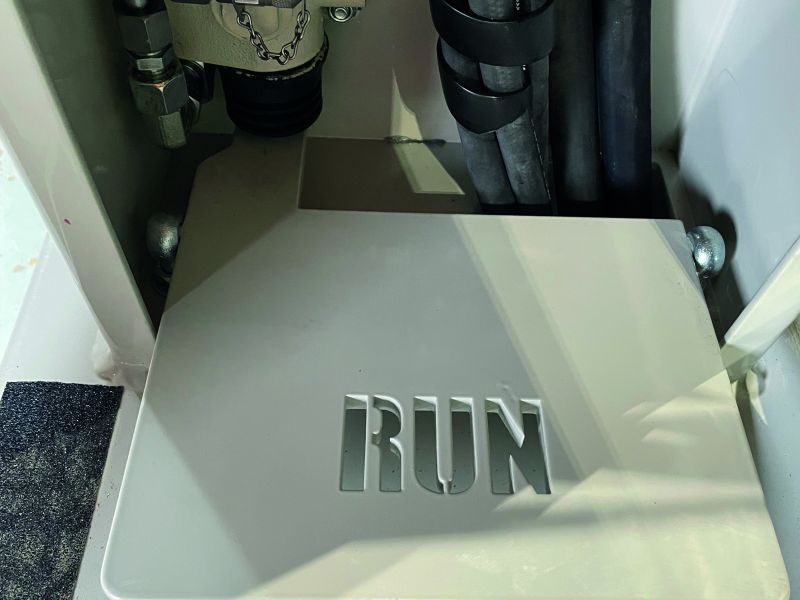

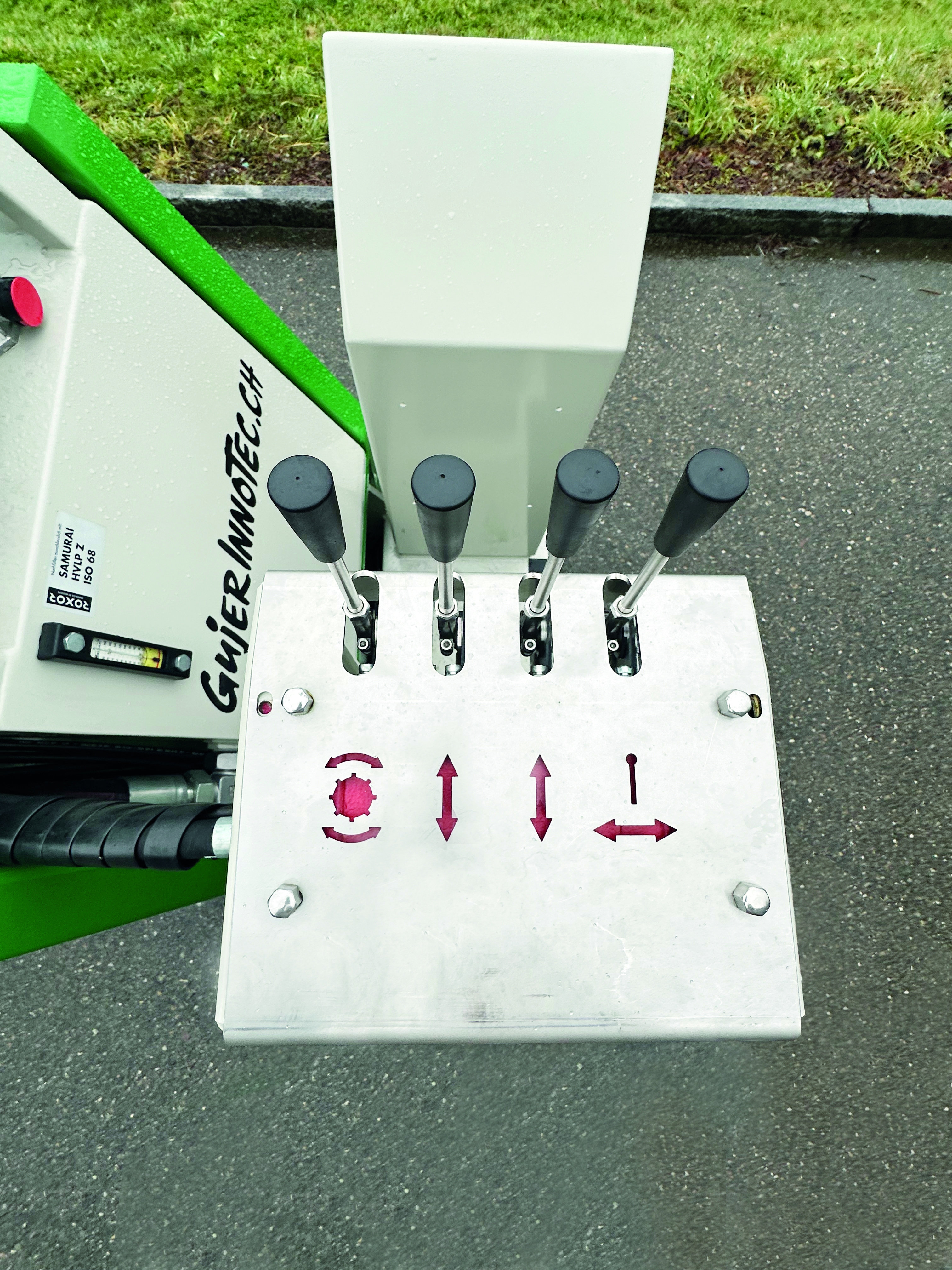

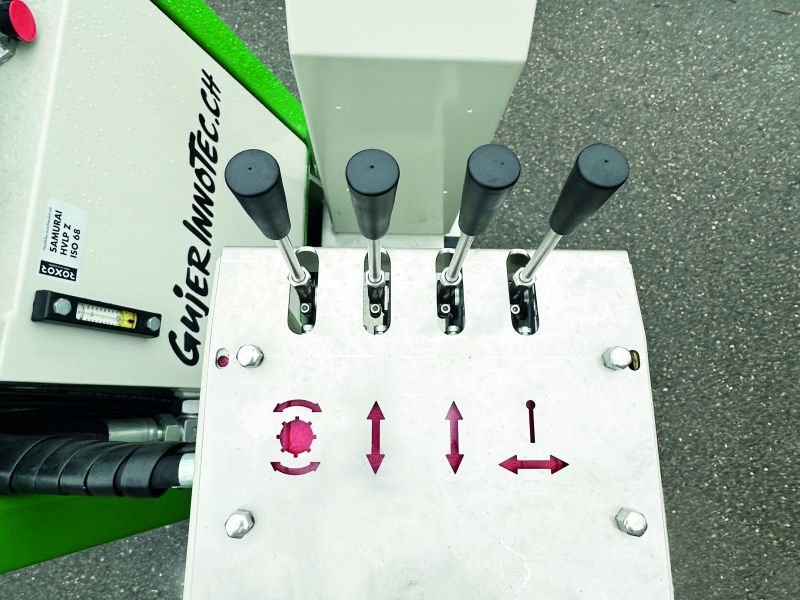

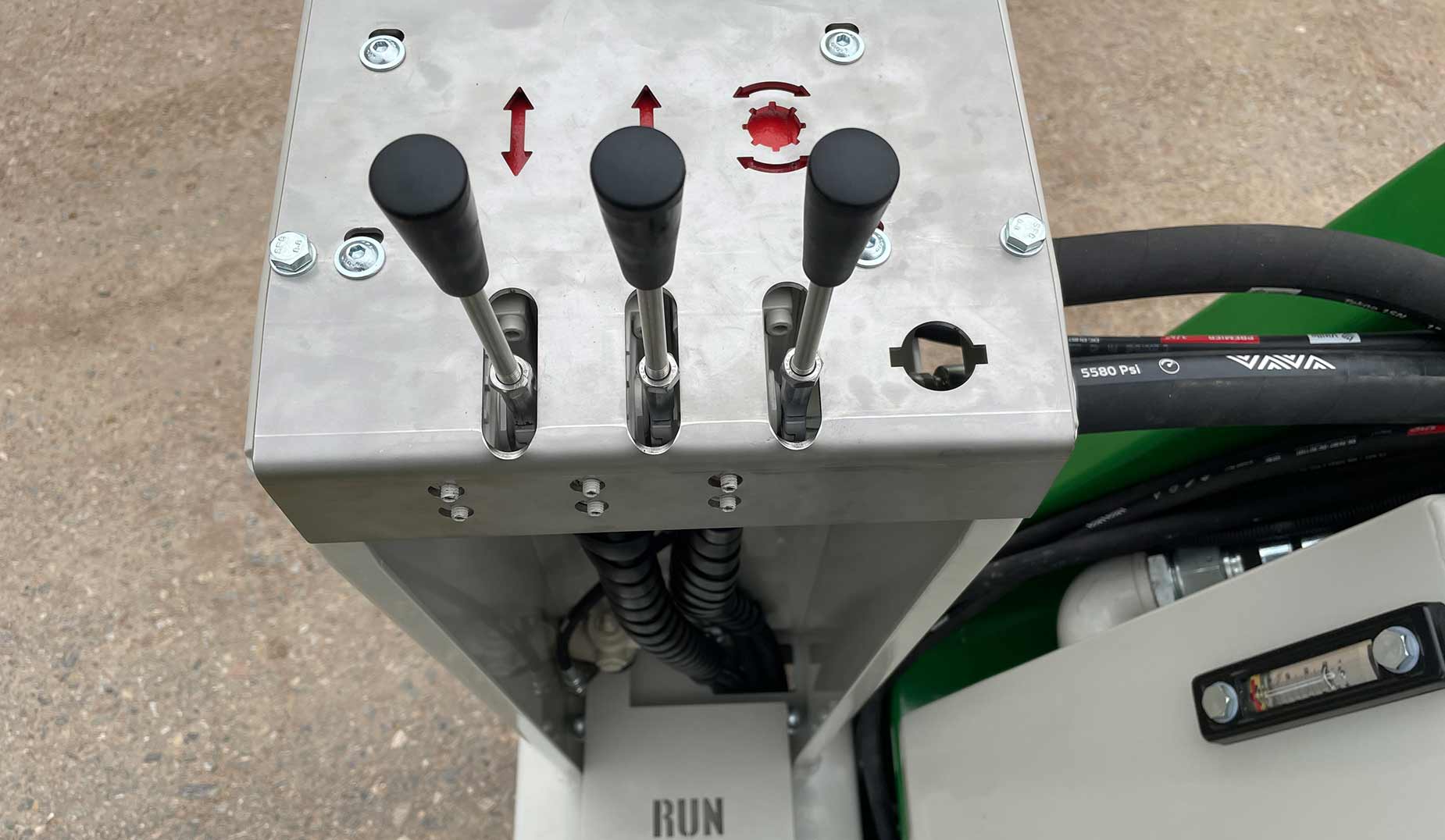

  • Control panel: Drive lever is held in the set position
  • Crawler chassis
  • Stone protection plate left and right incl. cover plate

Options (retrofittable):

  • Irrigation pipe with impact plate nozzle for external water connection

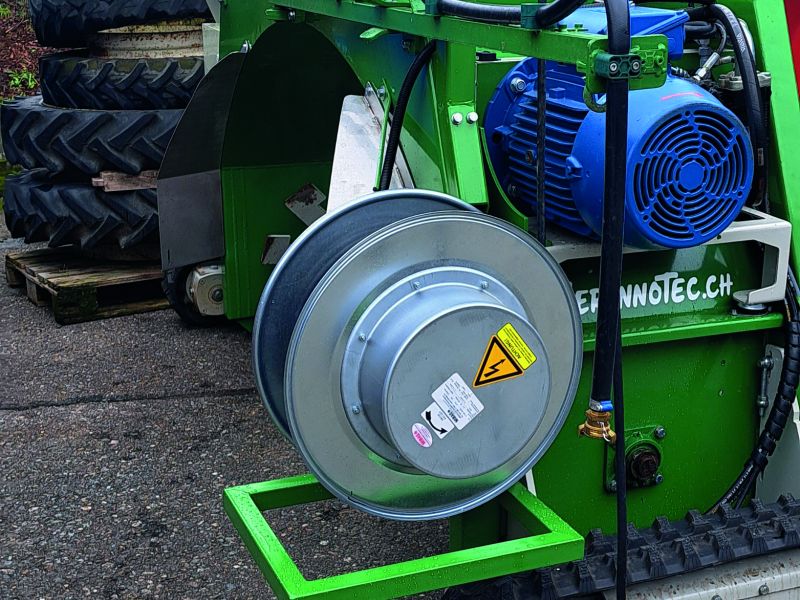

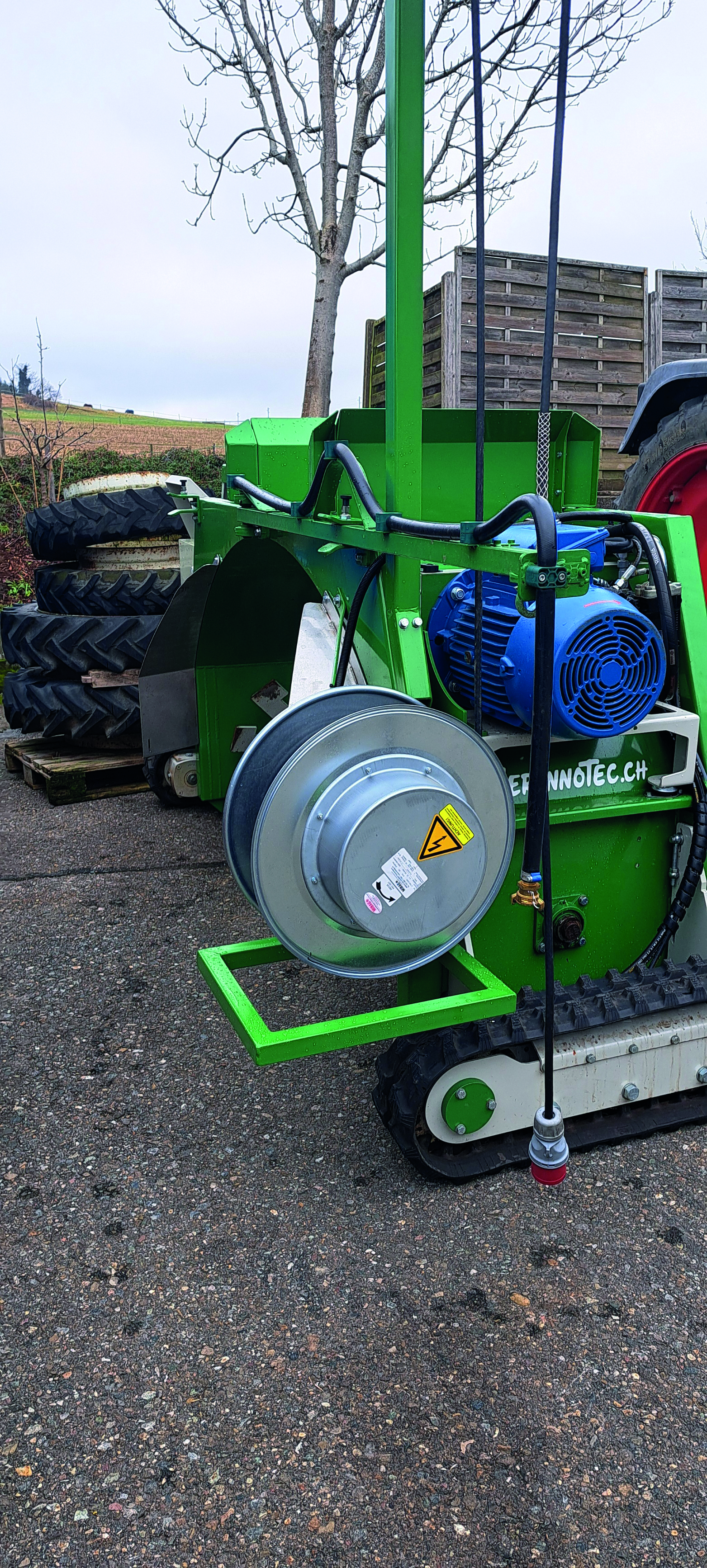

  • Cable reel up to 80 m for water hose or electric cable reel
  • Stone guard left, right and front
  • Hour meter
  • Rubber on the feed plates (for paved areas)
  • Battery operation on request
  • Hydraulically height-adjustable (to the video)
