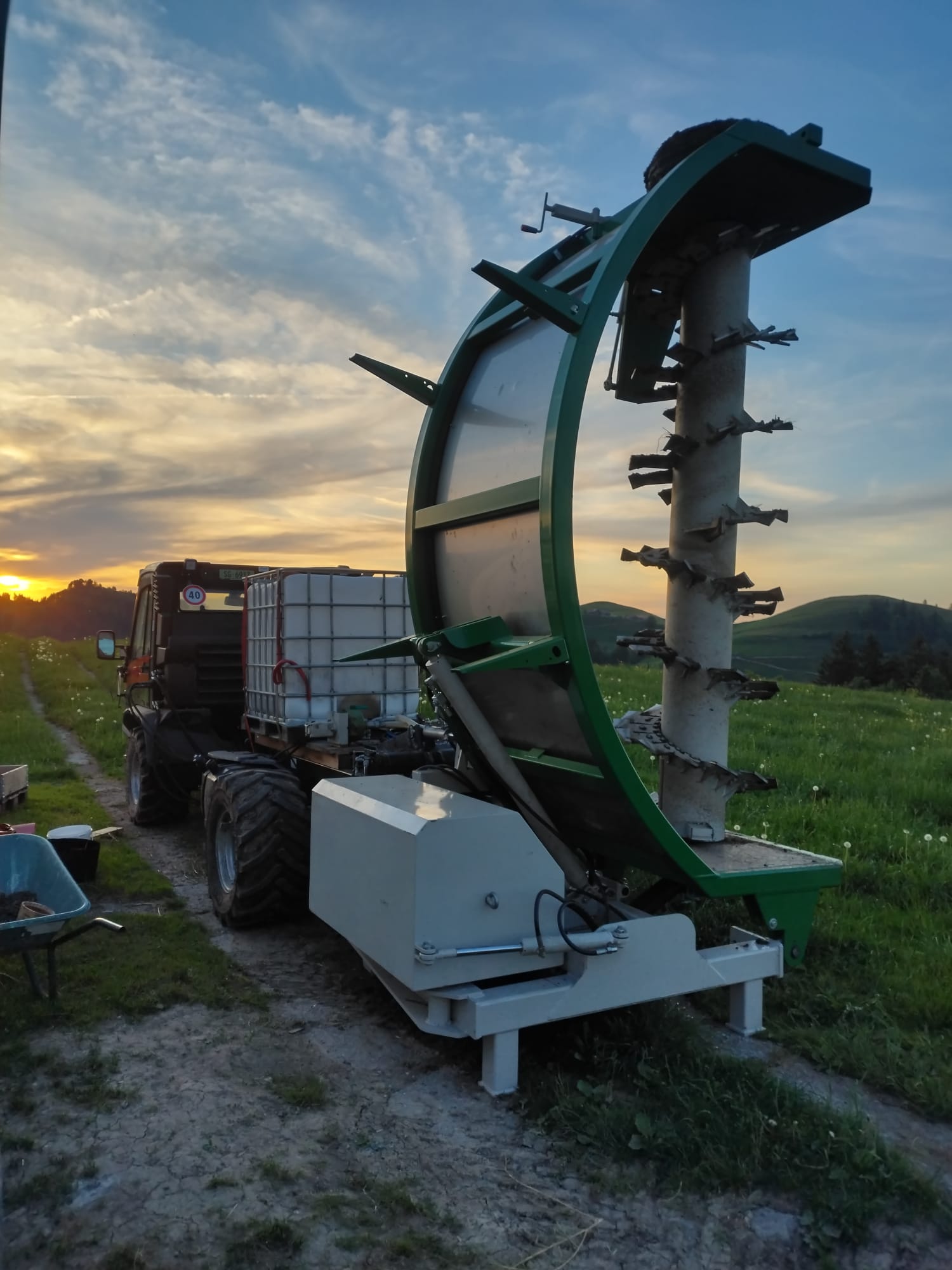

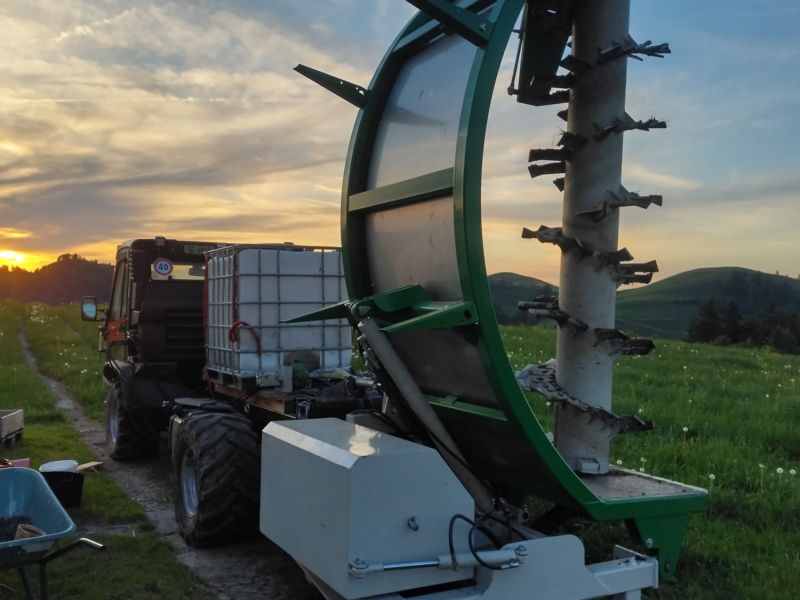

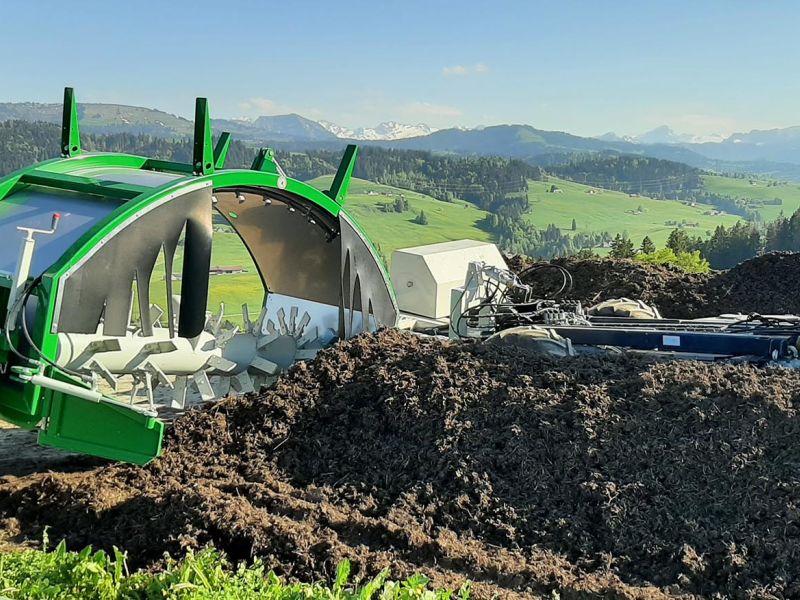

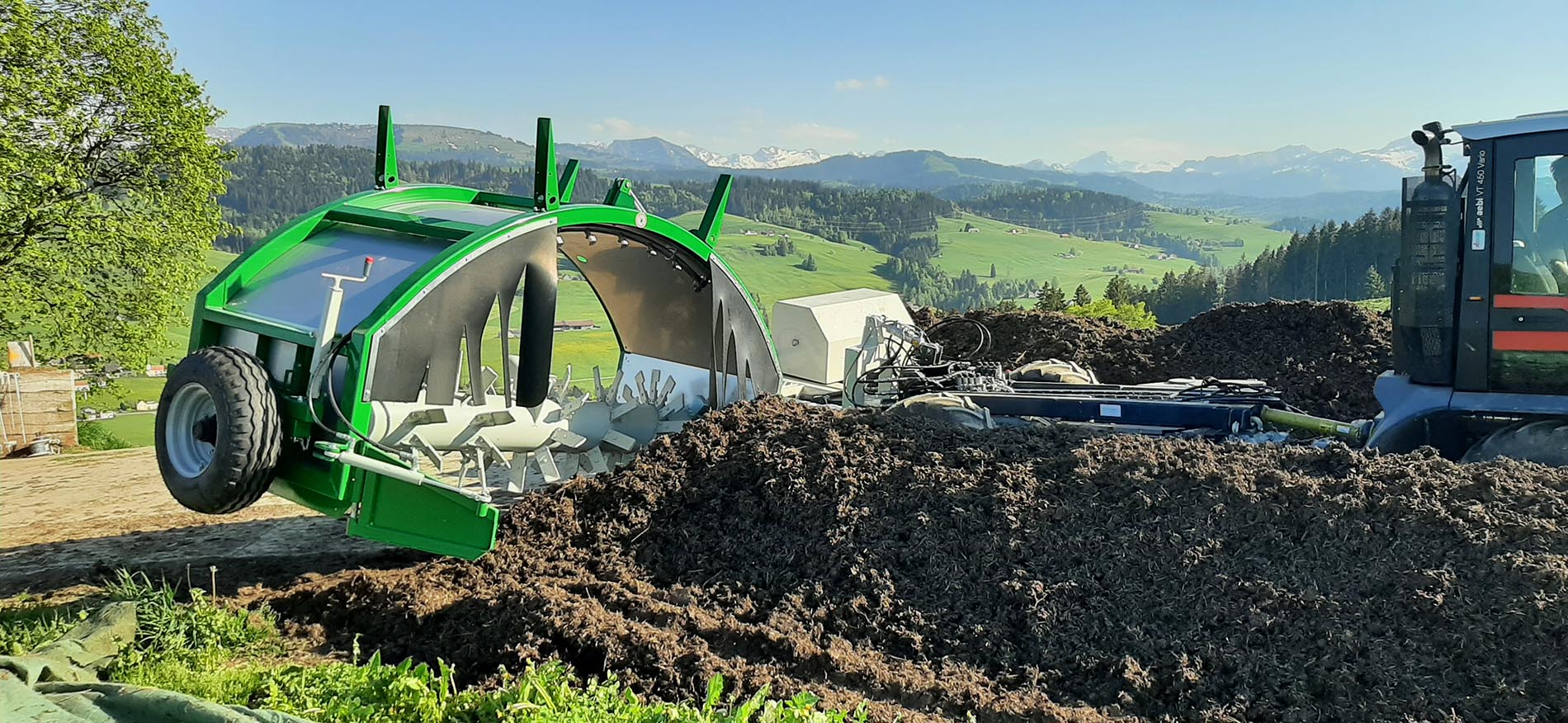

Compost turner TG 303

Ideal for field edge, small site composting and organic farms with composting up to 6,000 tons per year.

• Conversion capacity up to 700 m³/h.
• Small machine; the TG 301 is only 3.83 m long.
• Weight: 2400 kg
• Low maintenance costs, simplest maintenance.
• Easy handling, simple operation.

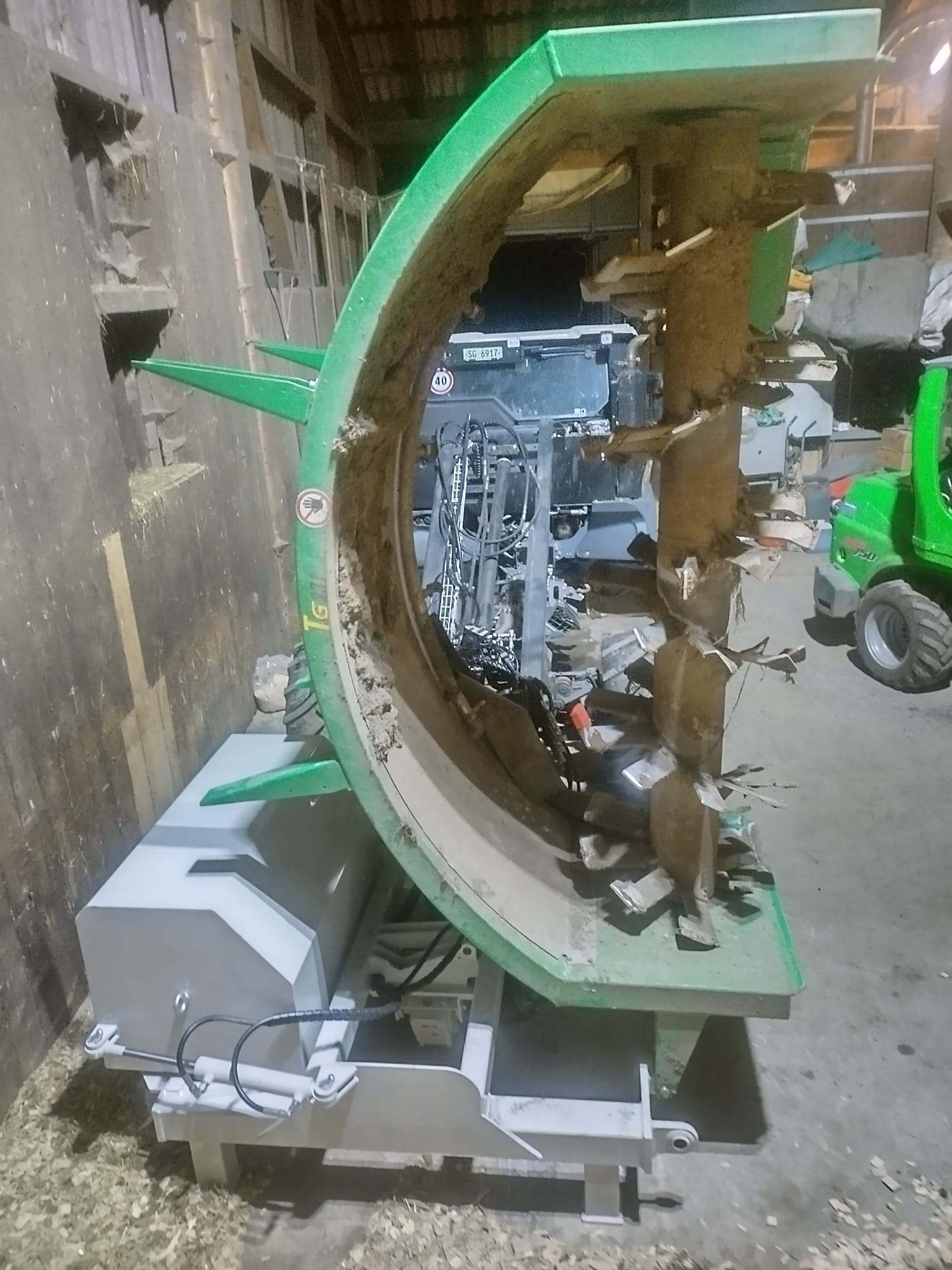

• The massive arch construction of the tunnel made of 6 mm steel achieves a very great stability, has no weak corner points and the Powder coating prevents corrosion.
• Chrome steel wear plates.

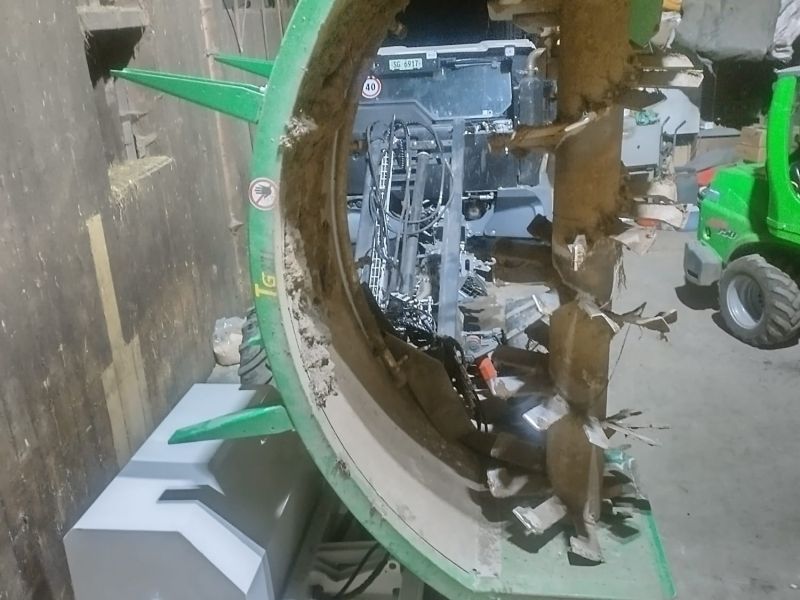

• Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
• Fast aerobic composting; within 8 - 12 weeks, depending on the material.
• Thanks to swiveling side weight; protection of field and field paths and optimal weight distribution.
• Large Support wheel of the transfer tunnel. Swiveling without tools and in seconds. (The road transport with the wheel swung back is possible without any problems).

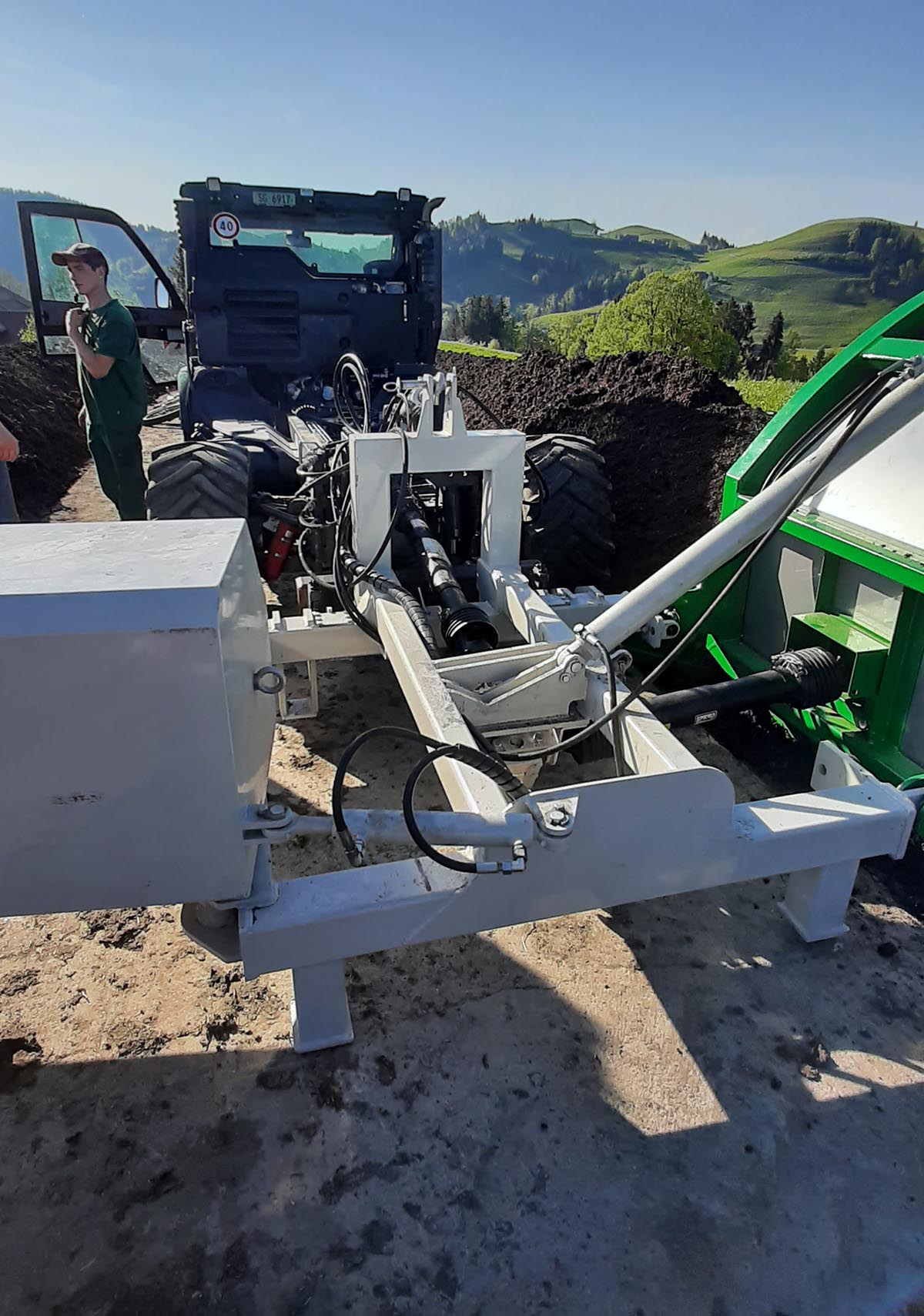

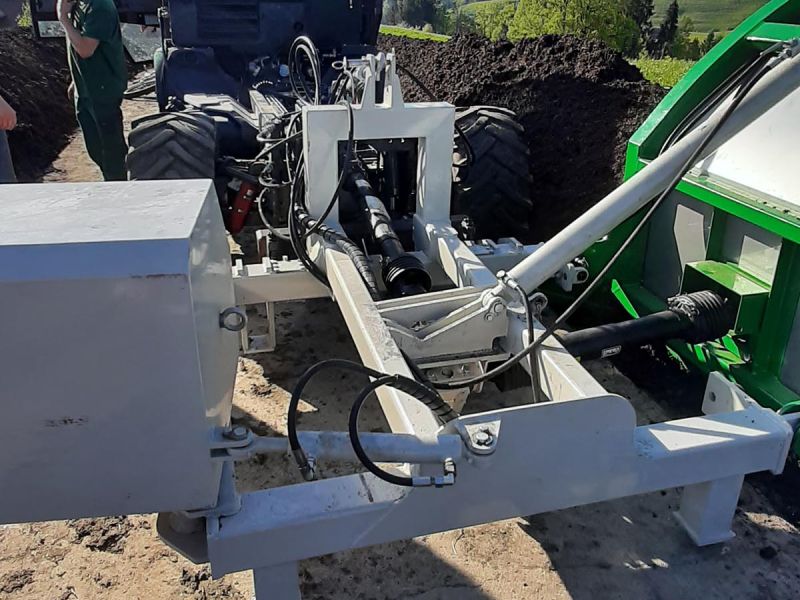

Requirements for the tractor:

• For tractors with a total width of up to 2.5 m
• For tractors with at least 125 hp or continuously variable transmission
• Travel speed at 540 rpm at the PTO shaft < 300 m/h
• Working pressure of the tractor 190–200 bar

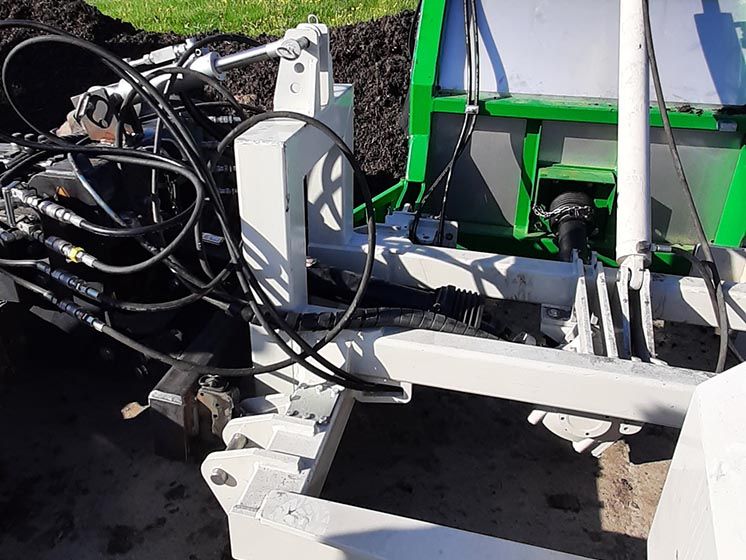

• For the standard version of the TG 303, the tractor requires two double-acting valves with 1x float position (these are 4 plug-in couplings)

Basic equipment:

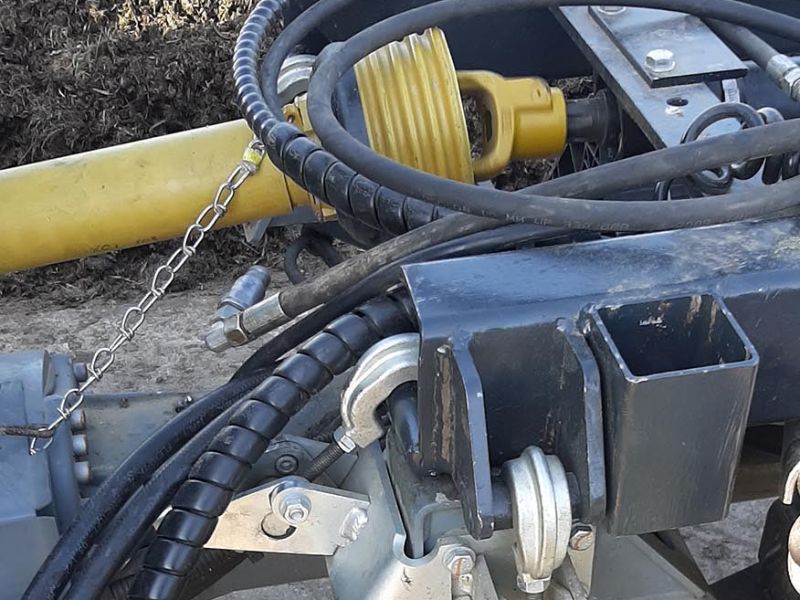

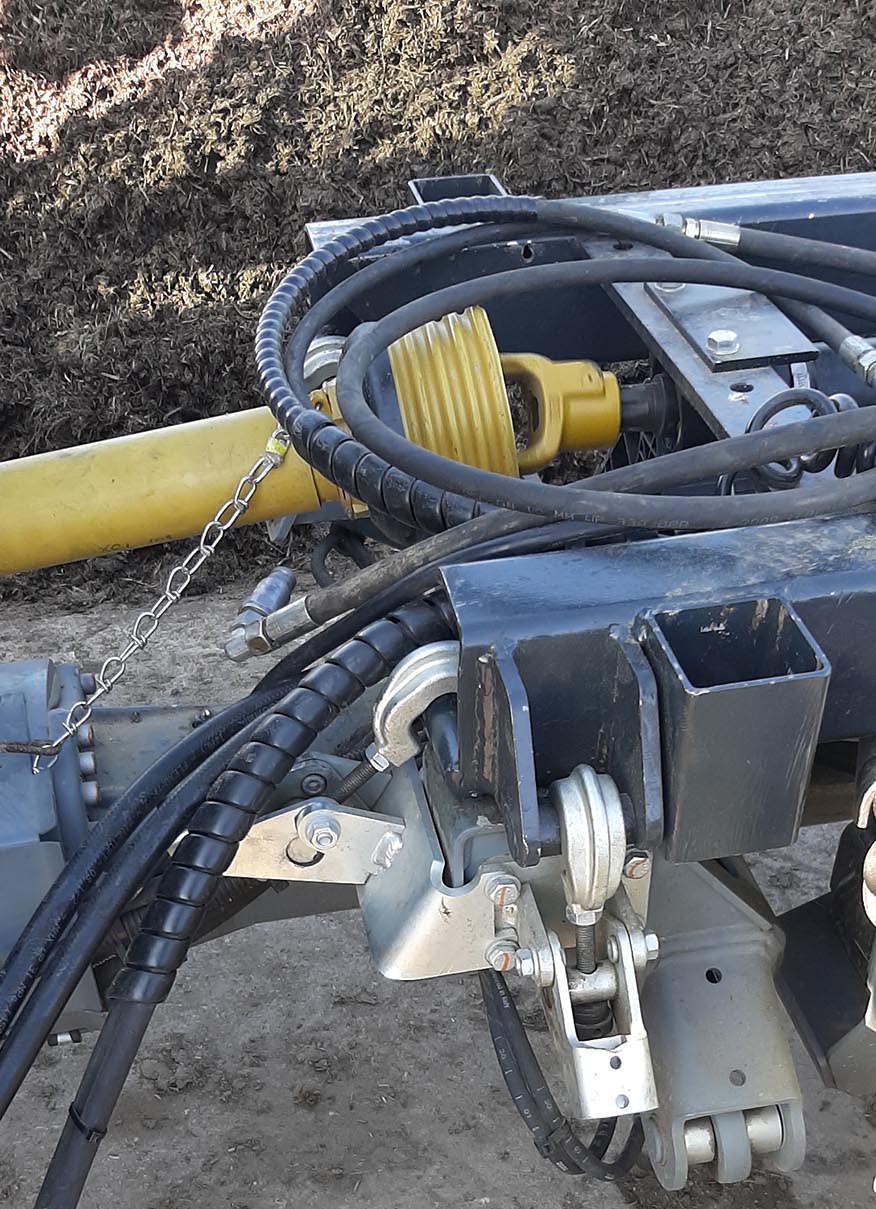

• Cardan shaft with shear bolt
• PTO shaft Gearbox reduction shaft
• Tunnel with chrome steel plates
• Direct drive on transfer shaft
• Large support wheel on the outside of the tunnel (swivelling, for transport)
• Mechanical feed plates
• Hydraulic side weight

Options:

• Blade right hydraulic
• Hydraulic side offset
• Irrigation pipe at front with baffle plate nozzles (7 pcs.)
• LED lighting
• Water connection at the rear
• Tile guide front and rear
• Stone guard on the right
• Water pump 180 litres
• Water pump 280 litres

Various watering options - on request
