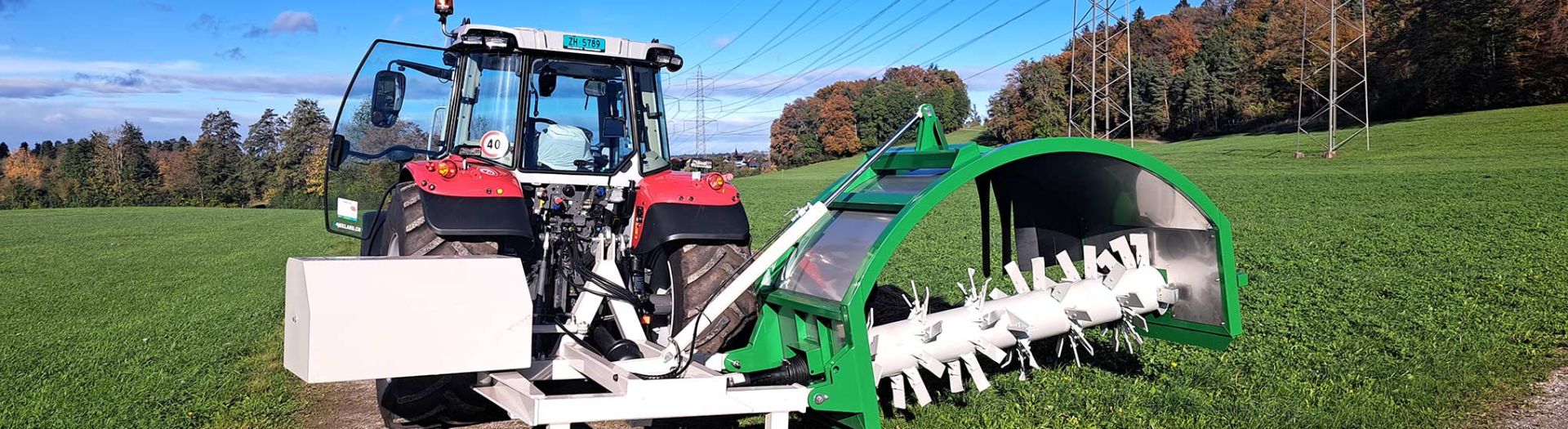

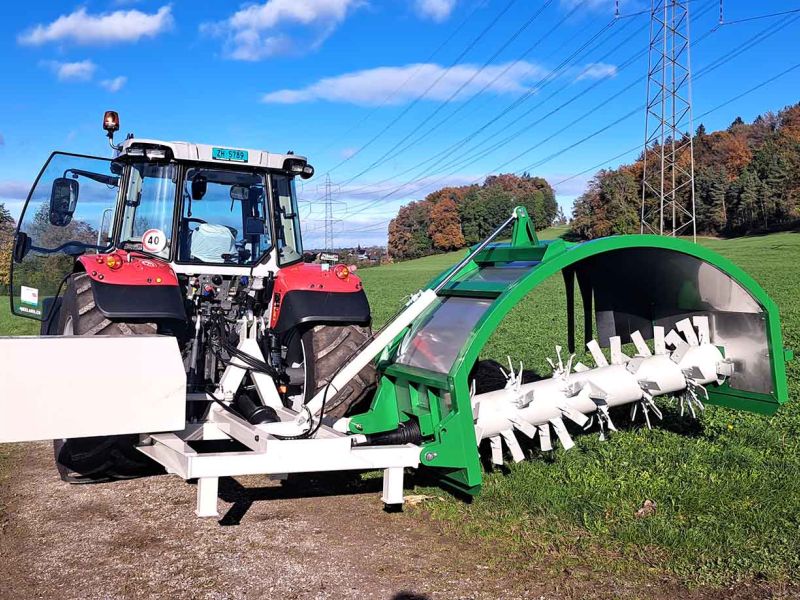

Compost turner TG 263
The 3-point system
Working width: 2.6 meter
Your advantage
A great advantage of this machine is its compact length (< 2m). The total weight is reduced to 1.9 t, compared to the TG 303 with 2.4 t. The 3-point beam fits both tunnel models 2.6m & 3m.
Prerequisite for the tractor
- 3-point TG 263 is suitable for tractors from 110 hp and min. 2.5 tonnes payload
Irrigation
Since soil nutrition cannot be produced without water, there are several options. Ask for the most ideal solution. We will be happy to advise you.
Compost Turners

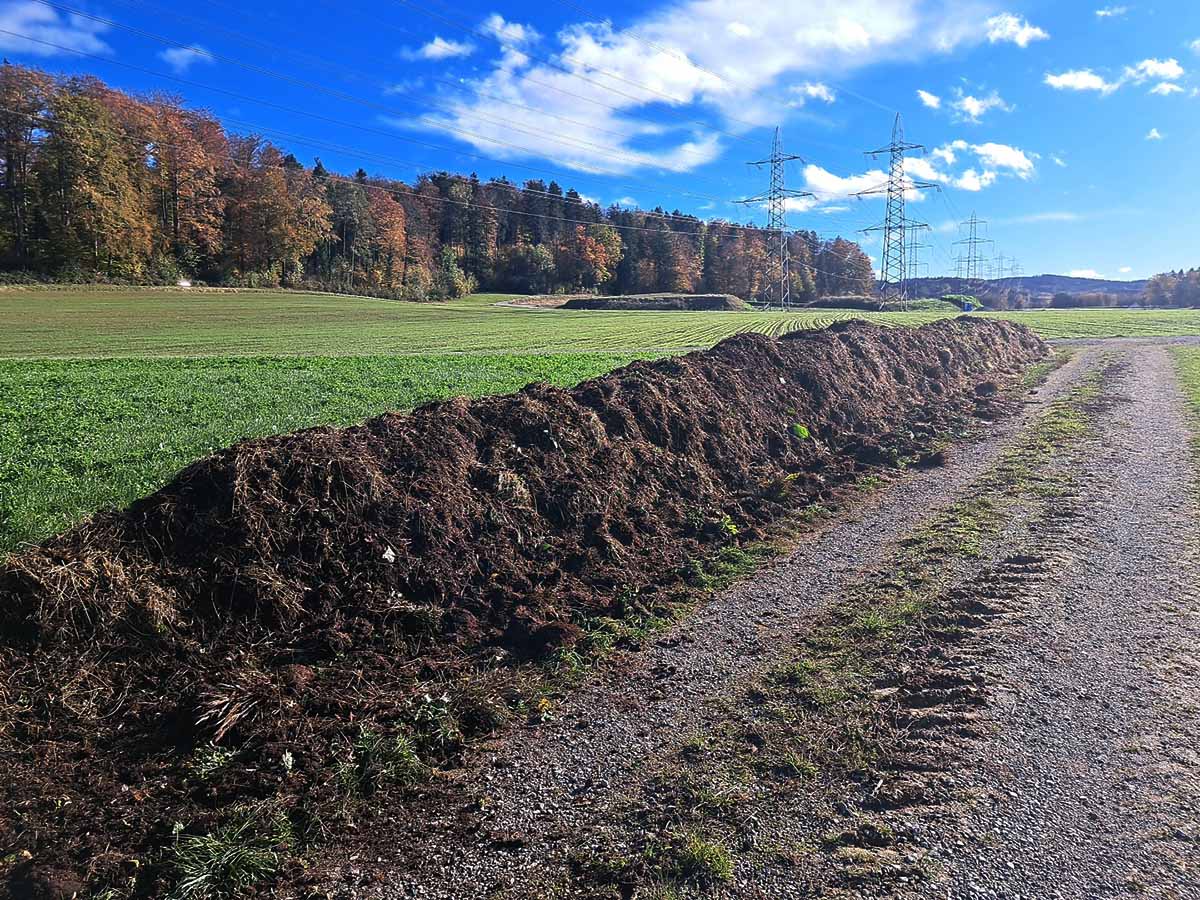

Ideal for field-edge and small-scale composting and organic farms with an annual composting capacity of up to 6,000 tons.
- Turning capacity up to 700 m³/h.

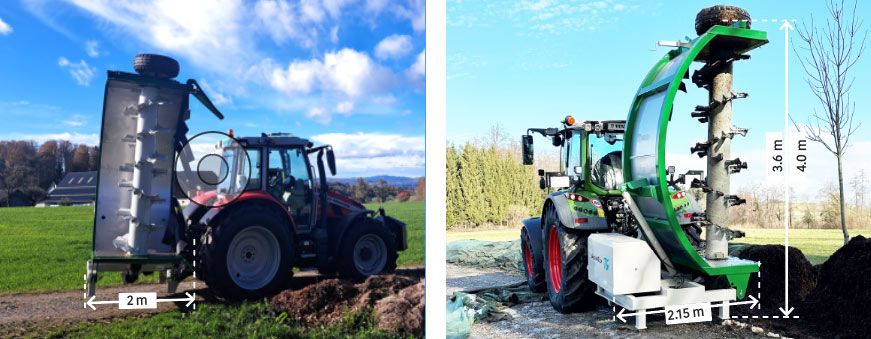

- Maneuverable machine; the TG 263 is less than 2 m long.
- Weight: approx. 1,900 kg (basic equipment)
- Low maintenance costs, extremely easy to maintain.
- Easy handling, simple operation.

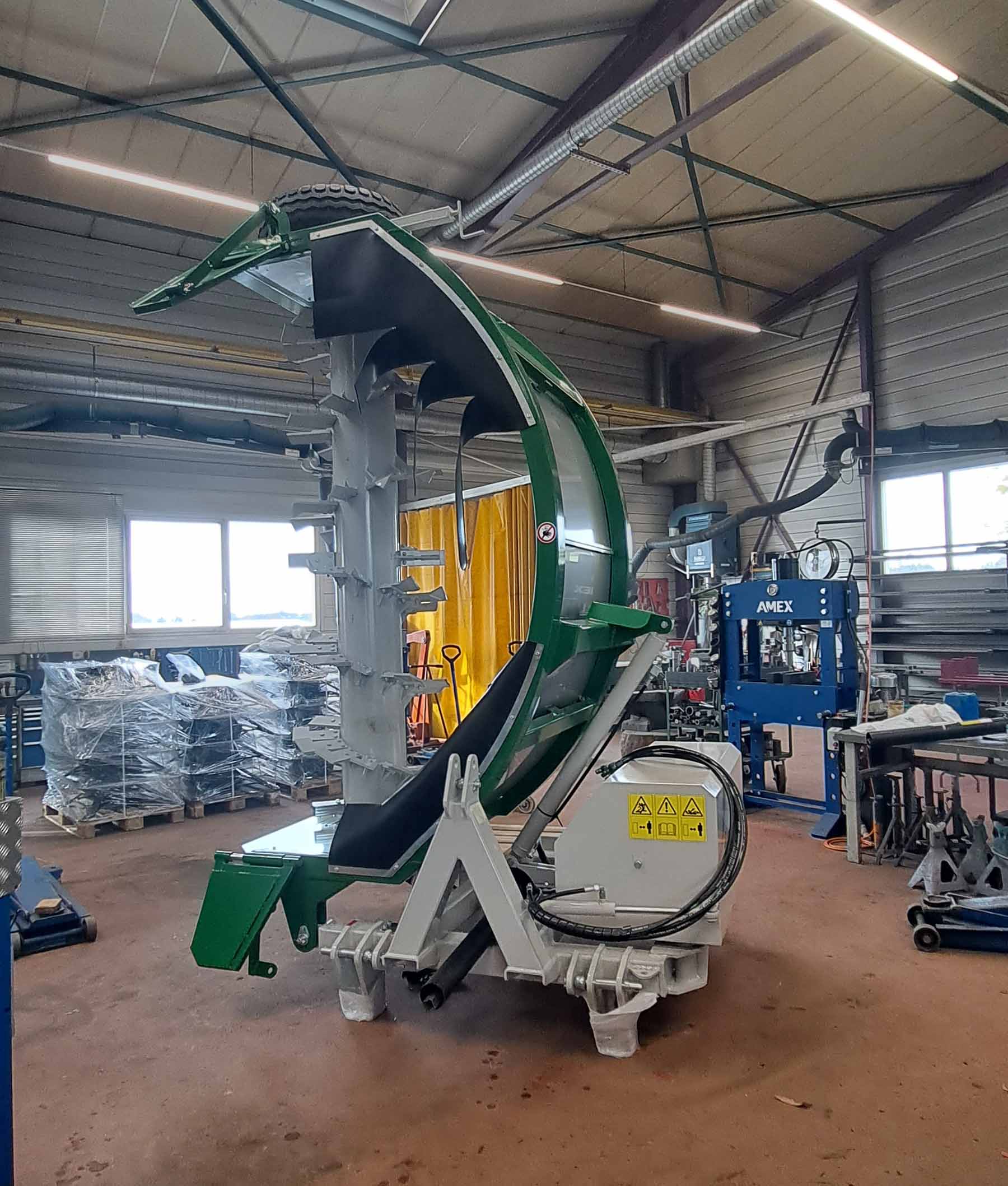

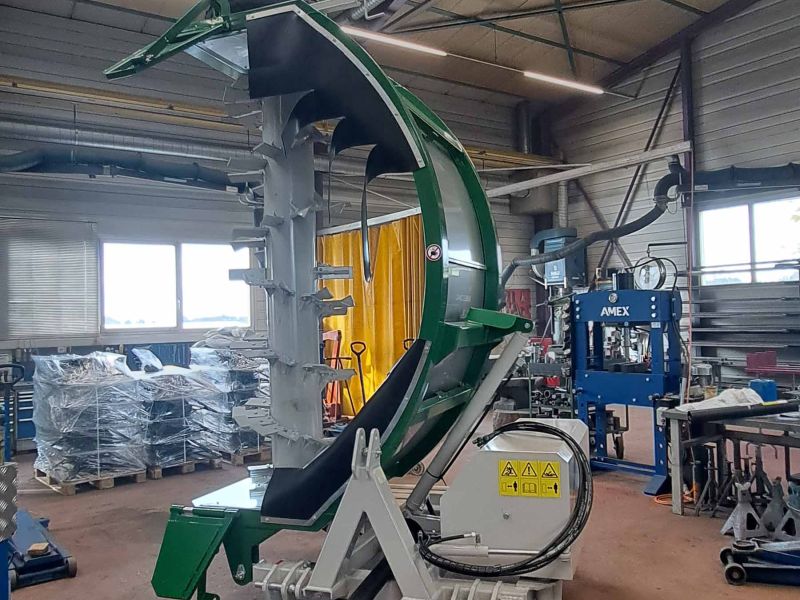

- The solid steel arch construction of the tunnel achieves a very high level of stability, has no weak corners, and the powder coating prevents corrosion.
- Wear plates are made of chrome steel.

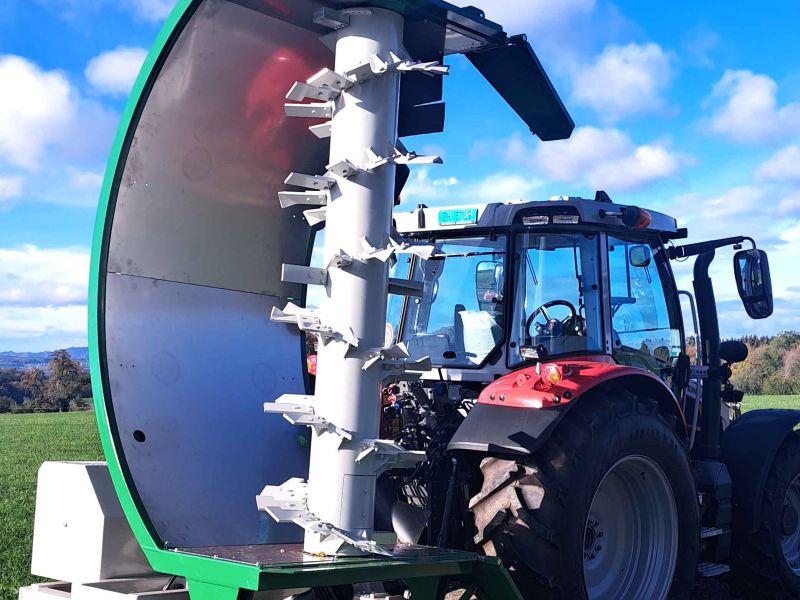

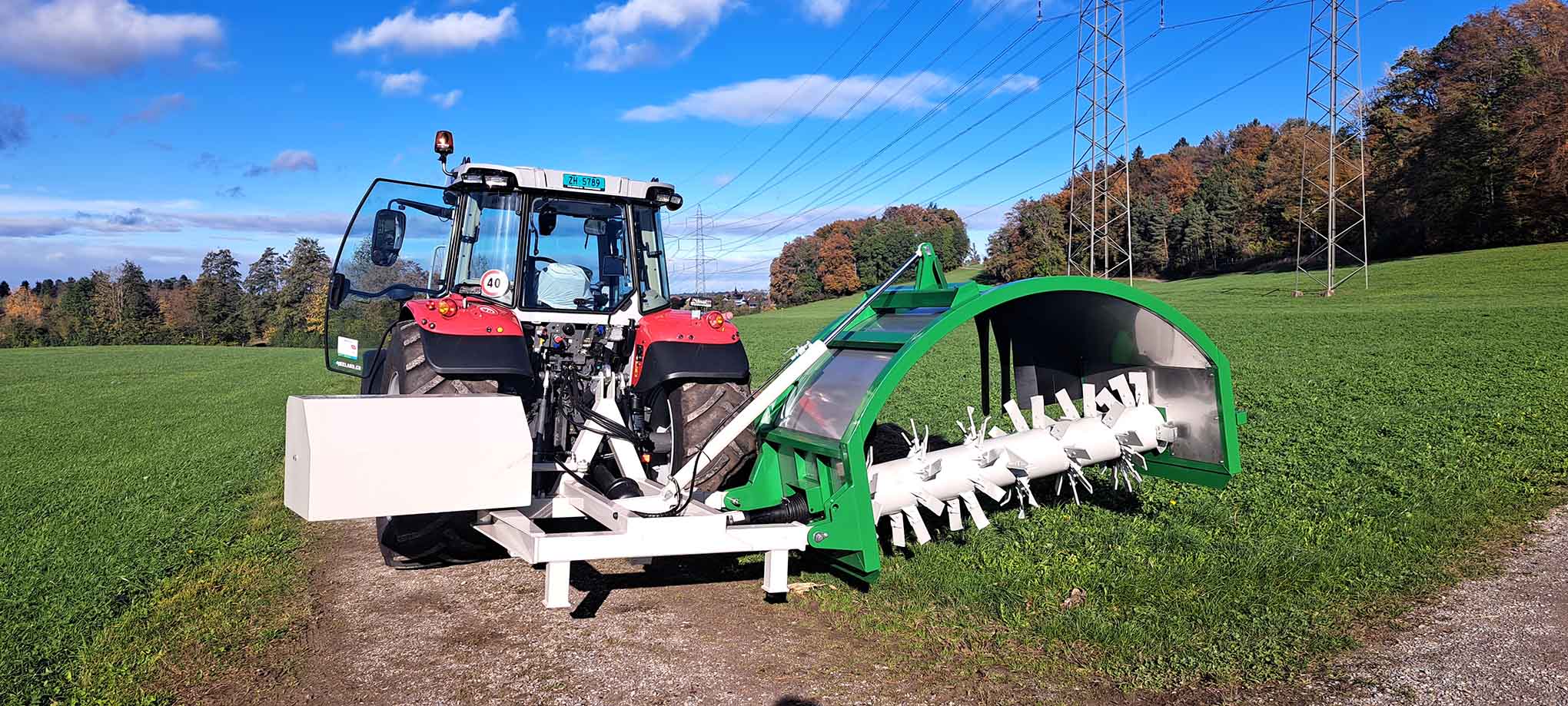

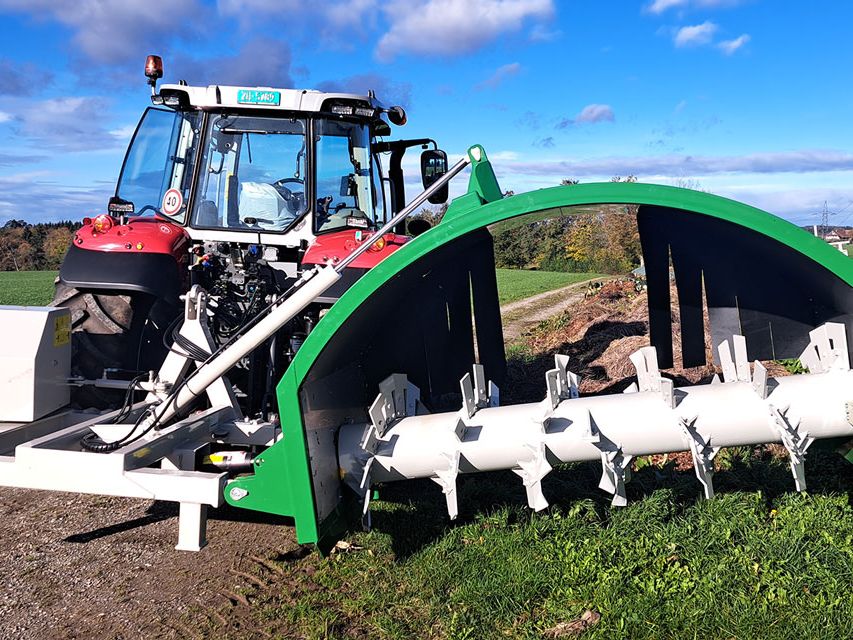

- Robust, balanced turning shaft that turns the material to be composted correctly (from the inside to the outside).
- Fast aerobic composting; within 8-12 weeks, depending on the material.

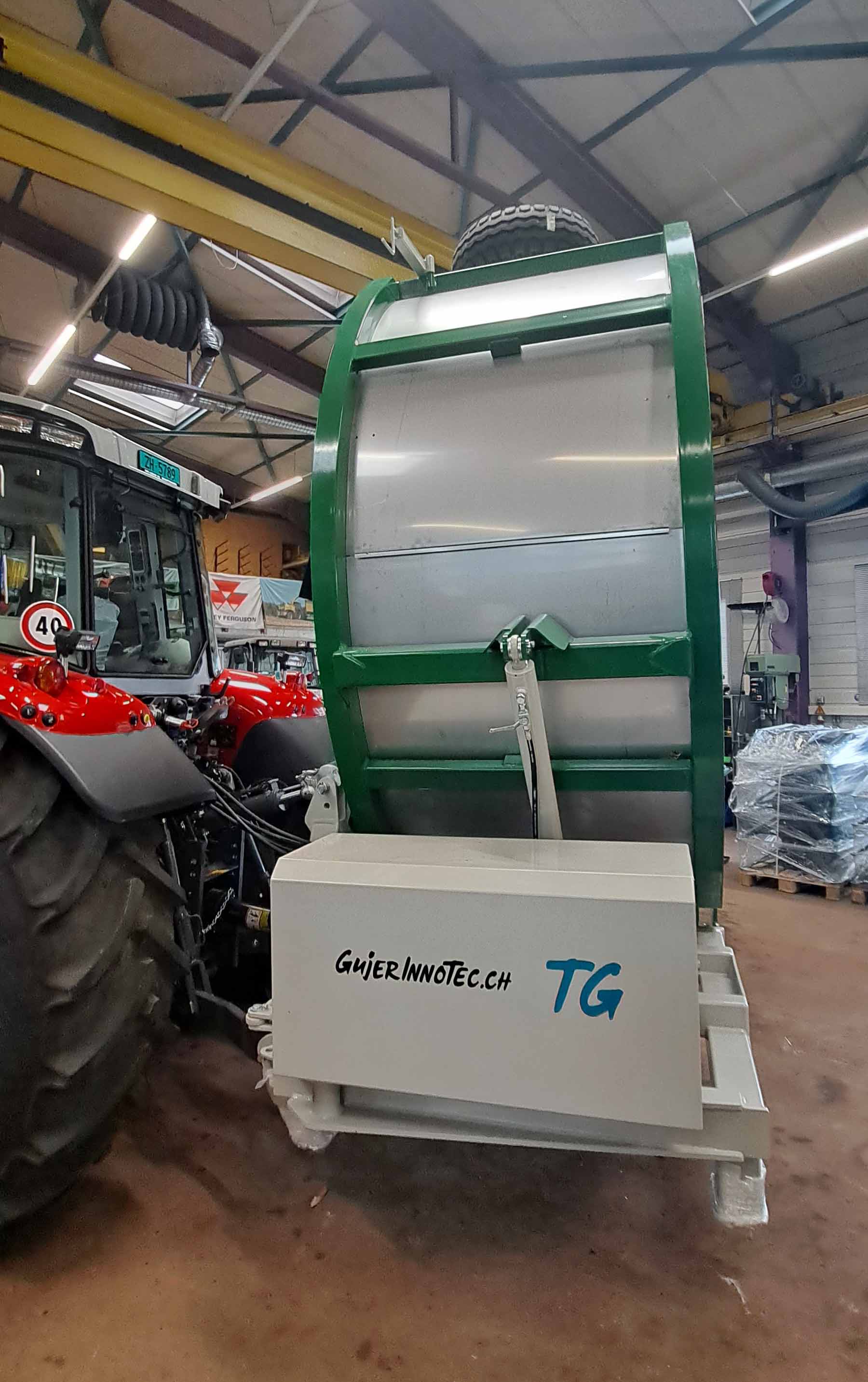

- Thanks to the swiveling side weight, field and farm tracks are protected and weight is distributed optimally.

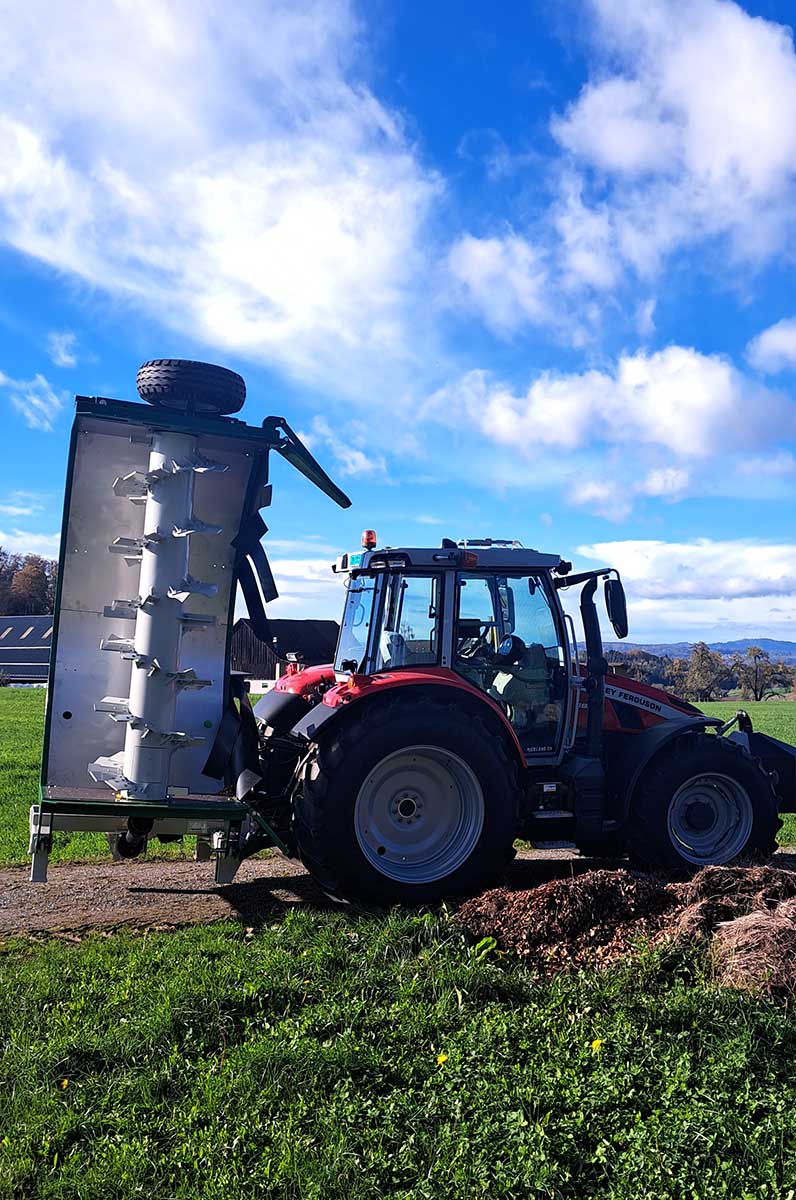

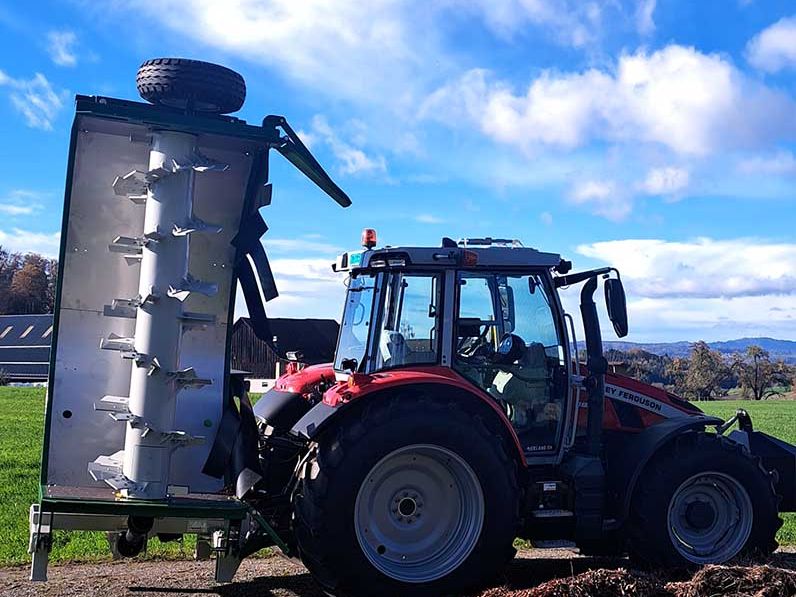

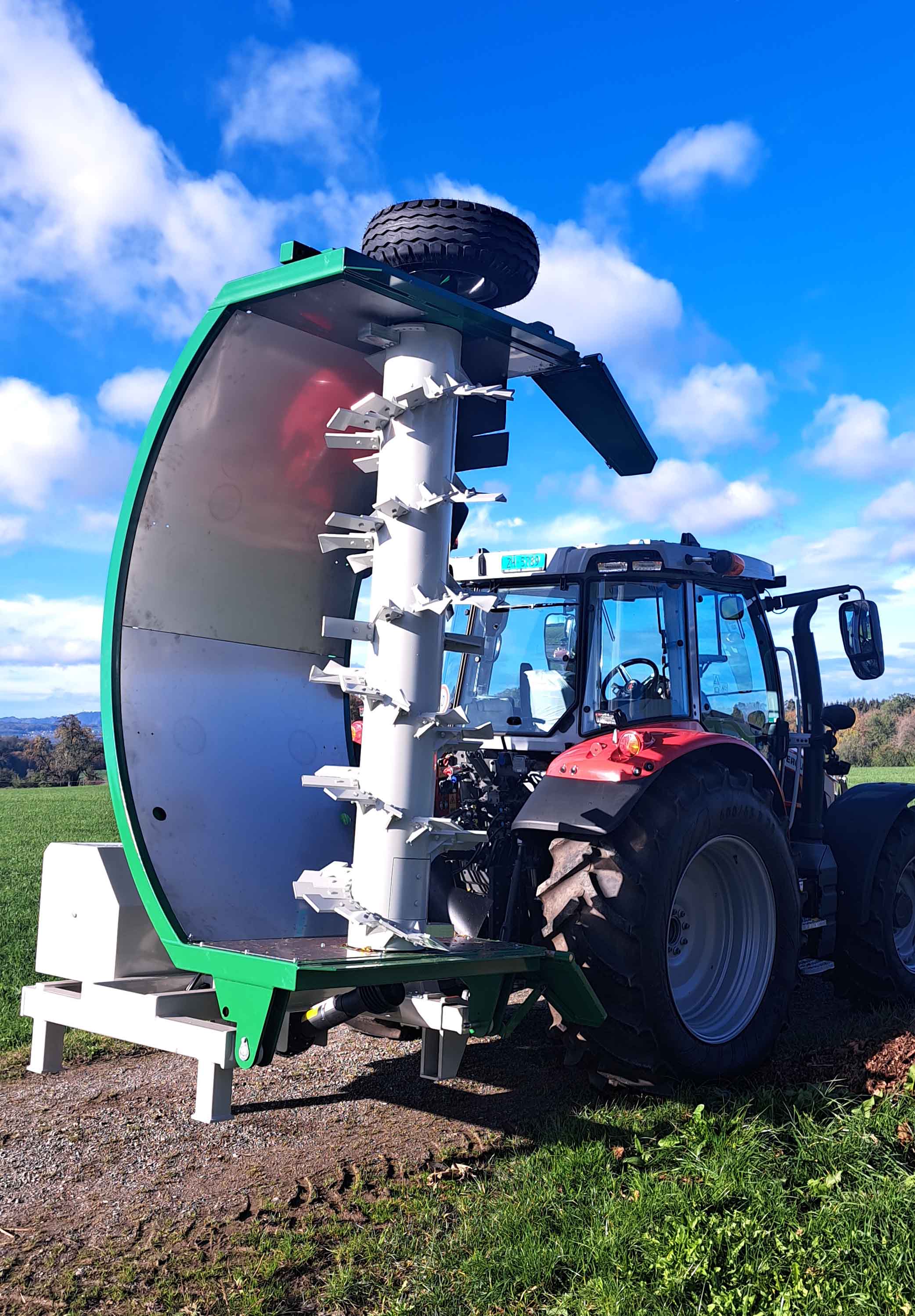

- Large support wheel on the turning tunnel. Swivels without tools and in seconds. (Road transport with the wheel swiveled back is possible without any problems).
Basic equipment
- Drive shaft with shear bolt
- Drive shaft transmission turning shaft
- Direct drive on turning shaft
- Tunnel with chrome steel sheets
- Large support wheel on the outside of the tunnel (swiveling, for transport)
- Mechanical feed plates
- Hydraulically swiveling side weight
Options:
- Hydraulic blade on the right
- Hydraulic side offset
- Fleece guide at the front and rear
- Stone protection rubber on the right
- 3rd support foot (for hanging in working position)
- LED lighting
- Water connection at the rear
- Irrigation pipe at the front with impact plate nozzles (7 pcs.)
- Water pump 180 litres
- Water pump 280 litres
Various watering options - on request
