Compost turner SGF 2600 D & E teaser

Compost turner SGF 2600 D & E

with electric or diesel drive (all-wheel)
For piles up to: 2.7 Meter

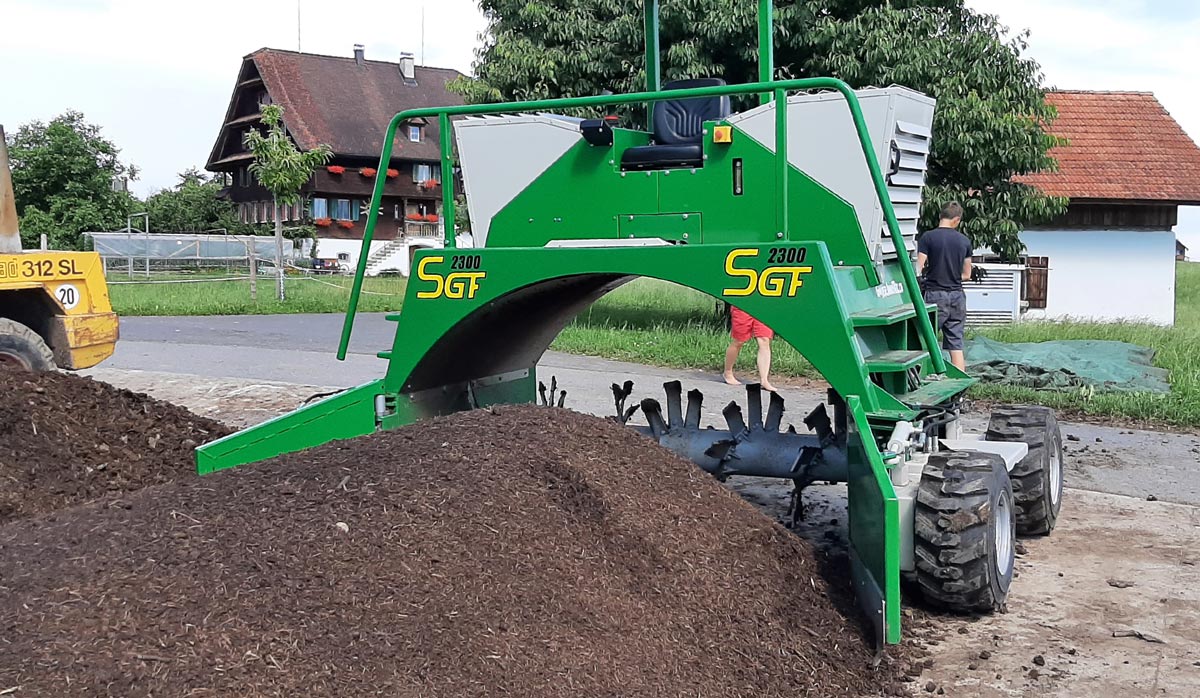

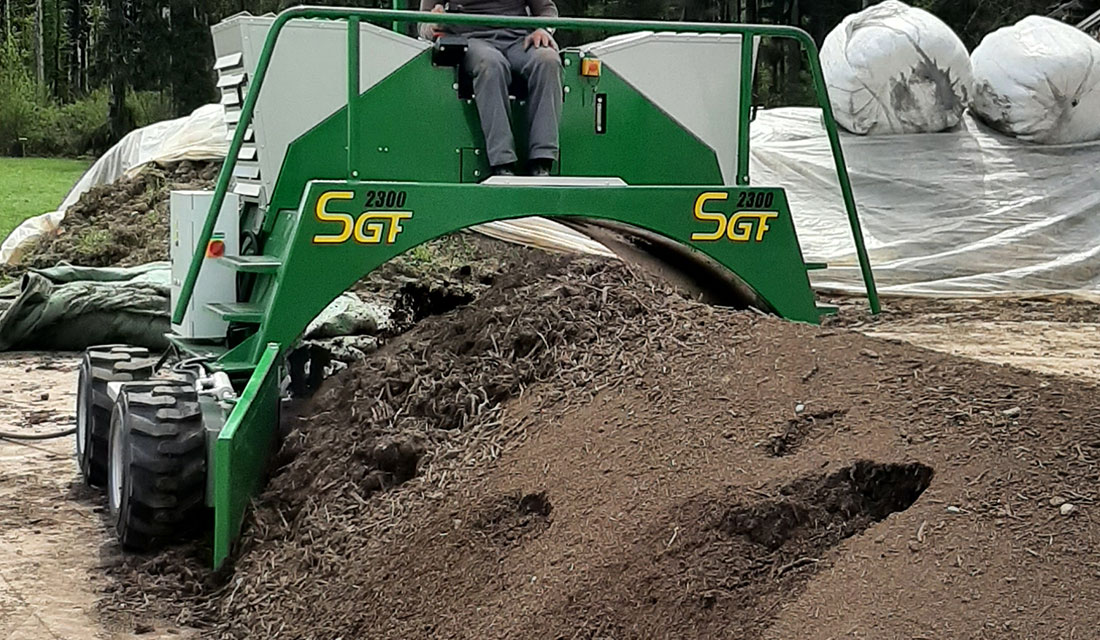

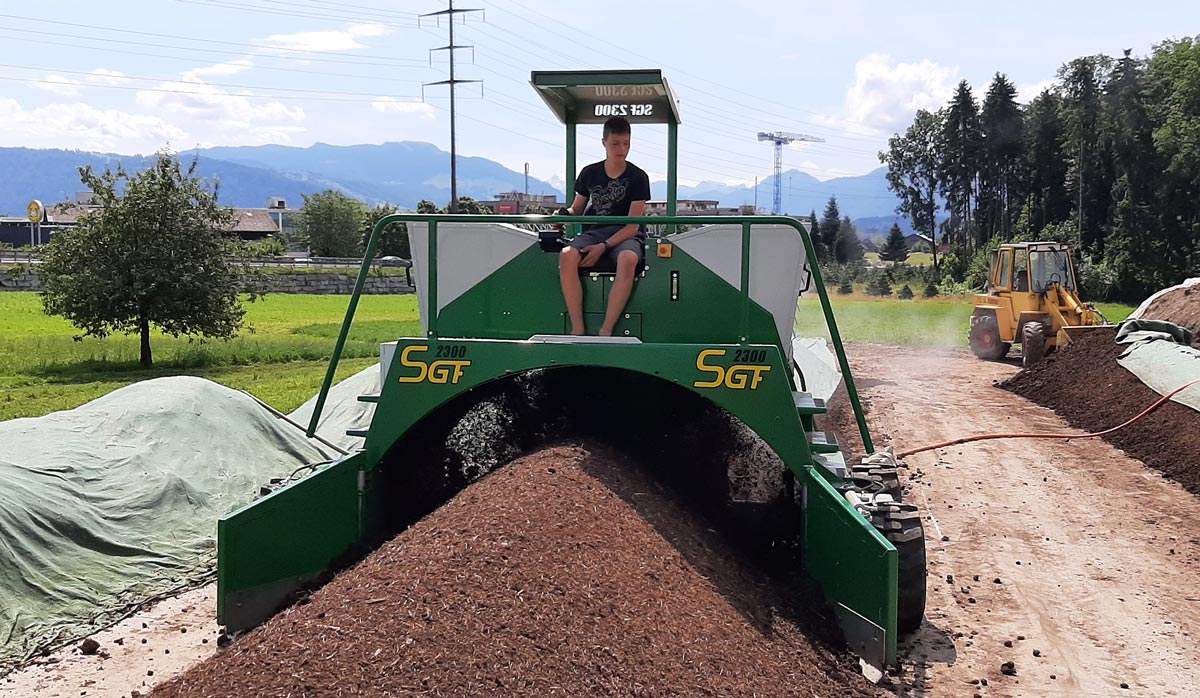

Compost turner SGF 2600 D & E machine

Advantages

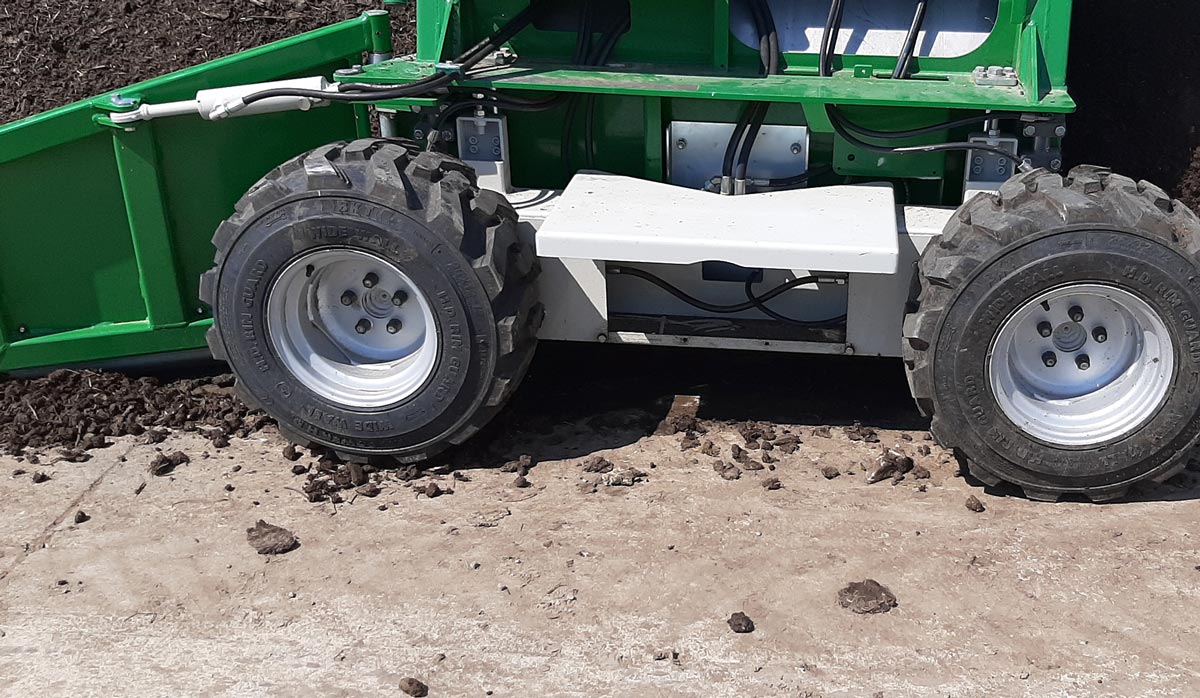

The machine can move pile widths of up to 2.7 meters with a capacity of 1.6 m3 / running meter. This corresponds to approximately 500 m3 / hr. Both machines operate with a 4-wheel drive. The diesel version is equipped with a 75 hp engine with particle filter.

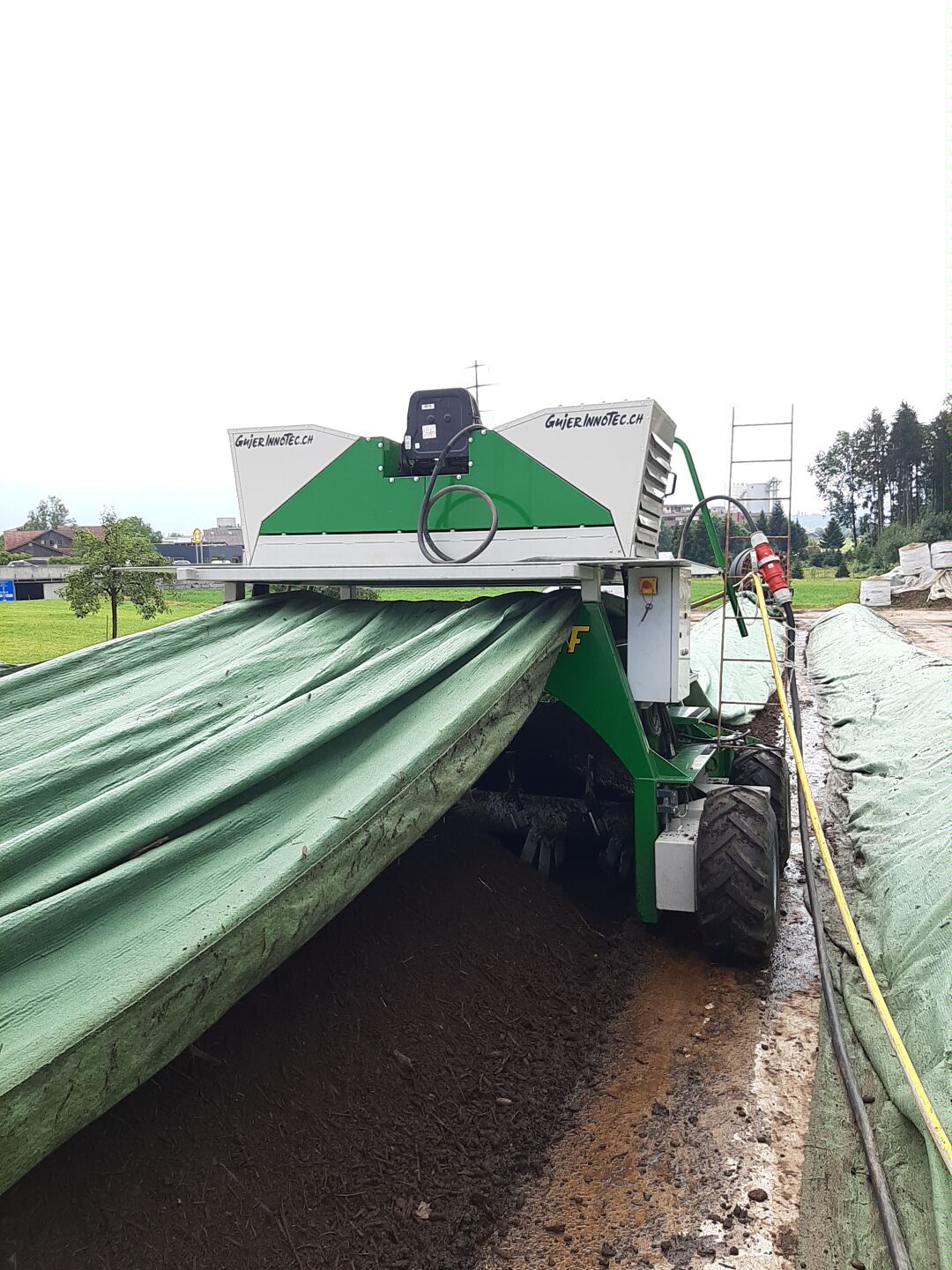

The electric motor also drives the hydraulic pump. Our customer, shown in the picture, obtains his electricity from the machine’s own solar collector.


Drive variants

  • Diesel engine: 75 hp – with particle filter
  • Electric motor: 35 kW / 400 V incl. hydraulic pump drive
    Connection: 85 A socket


Irrigation

Since soil nutrition canned be produced without water, there are several options. Ask us for the most ideal solution. We will be happy to advise you.

Compost Turners

Technical Data for SGF 2600 D&E:

  • Engine: Perkins 75 hp
  • Tunnel: Working width 2.7 m
  • Height (in working position): 1.20 m
  • Machine width: 3.9 m
  • Roller diameter: 0.65 m
  • Weight ready for use: 3500 kg, varies depending on options
  • Diesel tank: 80 liters
  • Hydraulic tank: 80 liters
  • Hydraulic system: Danfoss
  • Operating pressure: 0 bis 220 bar
  • Speed: 0.2 bis 3.0 km/h

Options:

  • Underneath fleece drive mechanism
  • Hose reel
  • Irrigation system
  • Irrigation nozzle
  • Injection unit
  • Rear view mirror set
  • Particle filter system
  • CAN Bus System


Clip
Photos
Downloads
News Flyer SGF 2600 D & E Download file
